fix: wire lineage Export button to SaaS via extension host

[ralphstodomingo]

Summary

The Export button on the lineage toolbar (top-right, next to Settings/Help) opened a popover but the inner submit silently failed — clicking Export did nothing visible, the popover closed, no notification, no network request.

Root cause: the inner submit calls ApiHelper.post("dbt/v4/export-lineage", ...) (in @altimateai/ui-components), but LineageView.tsx only patched ApiHelper.get. ApiHelper.post fell through to the default no-op stub (async () => ({}) as T), so the call resolved to {} immediately, response?.url was undefined, the success notification was skipped, and the popover closed.

Fix: three small wires.

File	Change
webview_panels/src/modules/lineage/LineageView.tsx	Patch ApiHelper.post to route dbt/v4/export-lineage → executeRequestInSync("exportLineage", ...).
src/webview_provider/newLineagePanel.ts	Add exportLineage command handler mirroring sendFeedback; returns { url } to the webview.
src/altimate.ts	Add altimate.exportLineage(req) POSTing to dbt/v4/export-lineage with the user's API key.

Test plan

• Typecheck tsc --noEmit (extension + webview): no new errors
• rsbuild build --mode development: extension bundle contains exportLineage symbol
• vite build (main + renderer, --minify false): webview bundle contains dbt/v4/export-lineage route
• Jest: altimate.test.ts + newLineagePanel.test.ts pass (9/9)
• Pre-fix/post-fix E2E on docker code-server (results posted as comment)
• Manual smoke: lineage render, expand/reset, settings, sendFeedback all unaffected

Summary by CodeRabbit

• New Features
  • Users can now export lineage data with custom naming, receiving a URL to access their exported information.

[coderabbitai]

No actionable comments were generated in the recent review. 🎉

ℹ️ Recent review info

⚙️ Run configuration

Configuration used: Organization UI

Review profile: CHILL

Plan: Pro

Run ID: 40245440-c01d-4ffd-949e-58dadacf7d34

📥 Commits

Reviewing files that changed from the base of the PR and between d8ebb4e and faa424a.

📒 Files selected for processing (3)

• src/altimate.ts
• src/webview_provider/newLineagePanel.ts
• webview_panels/src/modules/lineage/LineageView.tsx

---

Walkthrough

A new lineage export feature is implemented across three layers: an HTTP method is added to handle export requests in the Altimate API client, command handling is wired in the panel to invoke the export with name and lineage data, and a frontend request handler is added to route POST requests to the export endpoint.

Changes

Lineage Export Feature

Layer / File(s)	Summary
API Method src/altimate.ts	New exportLineage method posts request with name and lineage_data to dbt/v4/export-lineage endpoint, returns object containing URL string.
Command Handler src/webview_provider/newLineagePanel.ts	New exportLineage command branch calls altimate.exportLineage, posts success/failure responses, displays user-facing errors, and logs telemetry on failure.
Frontend Request Routing webview_panels/src/modules/lineage/LineageView.tsx	New ApiHelper.post handler for dbt/v4/export-lineage endpoint delegates to executeRequestInSync with exportLineage operation and provided data.

Sequence Diagram

sequenceDiagram
    participant UI as LineageView Component
    participant Handler as NewLineagePanel Handler
    participant API as AltimateRequest
    participant Backend as Backend Service

    UI->>Handler: exportLineage command with name & lineage_data
    Handler->>API: exportLineage({name, lineage_data})
    API->>Backend: POST /dbt/v4/export-lineage
    Backend-->>API: {url: string}
    API-->>Handler: {url: string}
    Handler->>UI: success response with URL
    UI->>UI: display result to user

Loading

Estimated code review effort

🎯 3 (Moderate) | ⏱️ ~20 minutes

Suggested reviewers

• mdesmet

🚥 Pre-merge checks | ✅ 5

✅ Passed checks (5 passed)

Check name	Status	Explanation
Title check	✅ Passed	The title clearly and specifically summarizes the main change: wiring the lineage Export button to communicate with the SaaS backend via the extension host.
Description check	✅ Passed	The description is comprehensive, including Problem, Solution, detailed test plan, and references to the issue; all required sections are present and well-documented.
Docstring Coverage	✅ Passed	No functions found in the changed files to evaluate docstring coverage. Skipping docstring coverage check.
Linked Issues check	✅ Passed	Check skipped because no linked issues were found for this pull request.
Out of Scope Changes check	✅ Passed	Check skipped because no linked issues were found for this pull request.

_{✏️ Tip: You can configure your own custom pre-merge checks in the settings.}

✨ Finishing Touches

📝 Generate docstrings

• Create stacked PR
• Commit on current branch

🧪 Generate unit tests (beta)

• Create PR with unit tests
• Commit unit tests in branch fix/AI-6465-export-lineage

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands and usage tips.}

[github-actions]

Bundle Size Report

darwin-arm64: 74.2 MB

Category	Size	Compressed	Files
Webview JS bundles	36.3 MB	12.3 MB	346
Native: altimate-core	35.1 MB	14.0 MB	1
Media assets	29.6 MB	25.8 MB	91
Native: zeromq	20.5 MB	8.2 MB	15
Webview images	15.3 MB	12.2 MB	18
Extension backend (JS)	2.7 MB	0.6 MB	1
Python packages	2.0 MB	0.5 MB	95
Native: other node_modules	1.0 MB	0.2 MB	139
Webview CSS	0.8 MB	0.1 MB	2
Webview other	0.5 MB	0.1 MB	5
Other	0.1 MB	26 KB	15
Total	143.9 MB	74.0 MB	728

linux-x64: 75.9 MB

Category	Size	Compressed	Files
Native: altimate-core	41.8 MB	15.1 MB	1
Webview JS bundles	36.3 MB	12.3 MB	346
Media assets	29.6 MB	25.8 MB	91
Native: zeromq	21.9 MB	8.7 MB	16
Webview images	15.3 MB	12.2 MB	18
Extension backend (JS)	2.7 MB	0.6 MB	1
Python packages	2.0 MB	0.5 MB	95
Native: other node_modules	1.0 MB	0.2 MB	139
Webview CSS	0.8 MB	0.1 MB	2
Webview other	0.5 MB	0.1 MB	5
Other	0.1 MB	26 KB	15
Total	152.0 MB	75.7 MB	729

win32-x64: 76.8 MB

Category	Size	Compressed	Files
Native: altimate-core	50.3 MB	16.2 MB	1
Webview JS bundles	36.3 MB	12.3 MB	346
Media assets	29.6 MB	25.8 MB	91
Native: zeromq	20.0 MB	8.1 MB	15
Webview images	15.3 MB	12.2 MB	18
Extension backend (JS)	2.7 MB	0.6 MB	1
Native: other node_modules	2.3 MB	0.7 MB	147
Python packages	2.0 MB	0.5 MB	95
Webview CSS	0.8 MB	0.1 MB	2
Webview other	0.5 MB	0.1 MB	5
Other	0.1 MB	26 KB	15
Total	159.8 MB	76.6 MB	736

[ralphstodomingo]

E2E results — pre-fix repro vs post-fix verify

Run on docker code-server (docker-setup/) with jaffle-shop-duckdb seeded + ran (customers lineage, 1L upstream).

Pre-fix (master @ d8ebb4e7, freshly built)

Step	Observation
1. Click toolbar Export	Popover opens with name input + disabled inner Export — toolbar layer is fine
2. Type repro-AI-6465-master	Inner Export enables
3. Click inner Export	Popover closes, no notification, no network request
4. Playwright network log filtered for `export-lineage	altimate
5. Extension log grep exportLineage| export-lineage	No match — handler never invoked

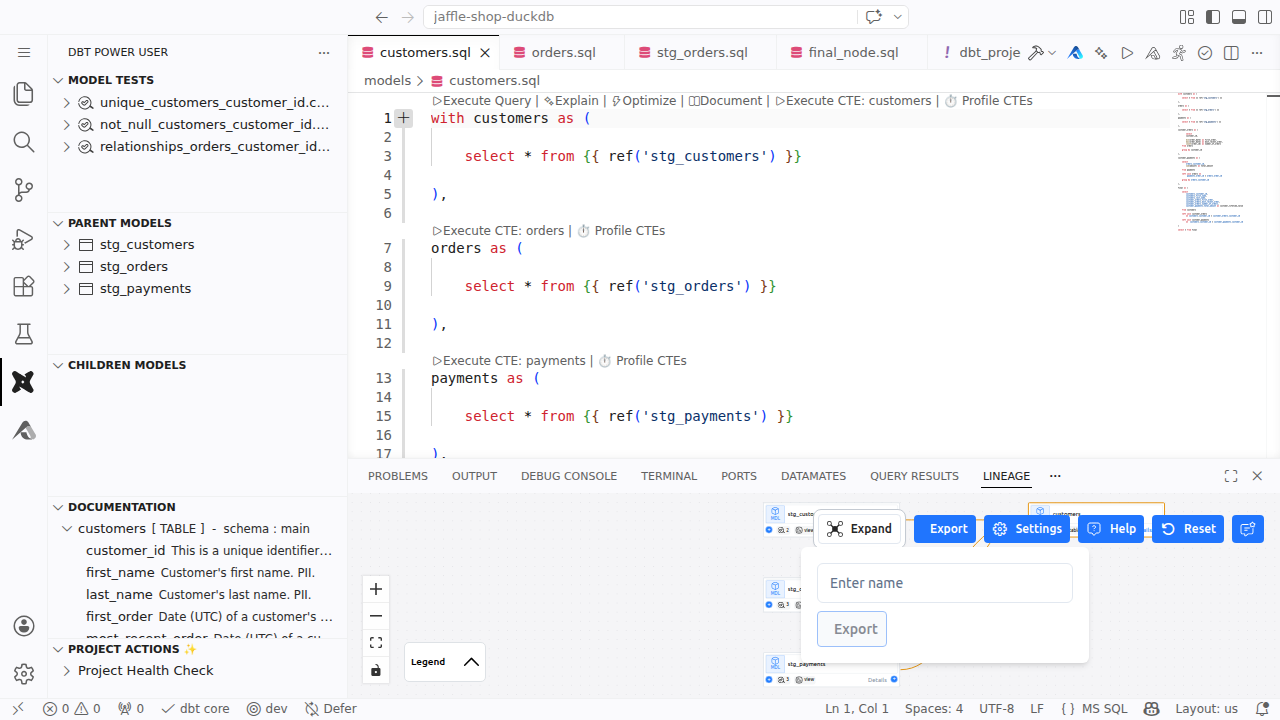

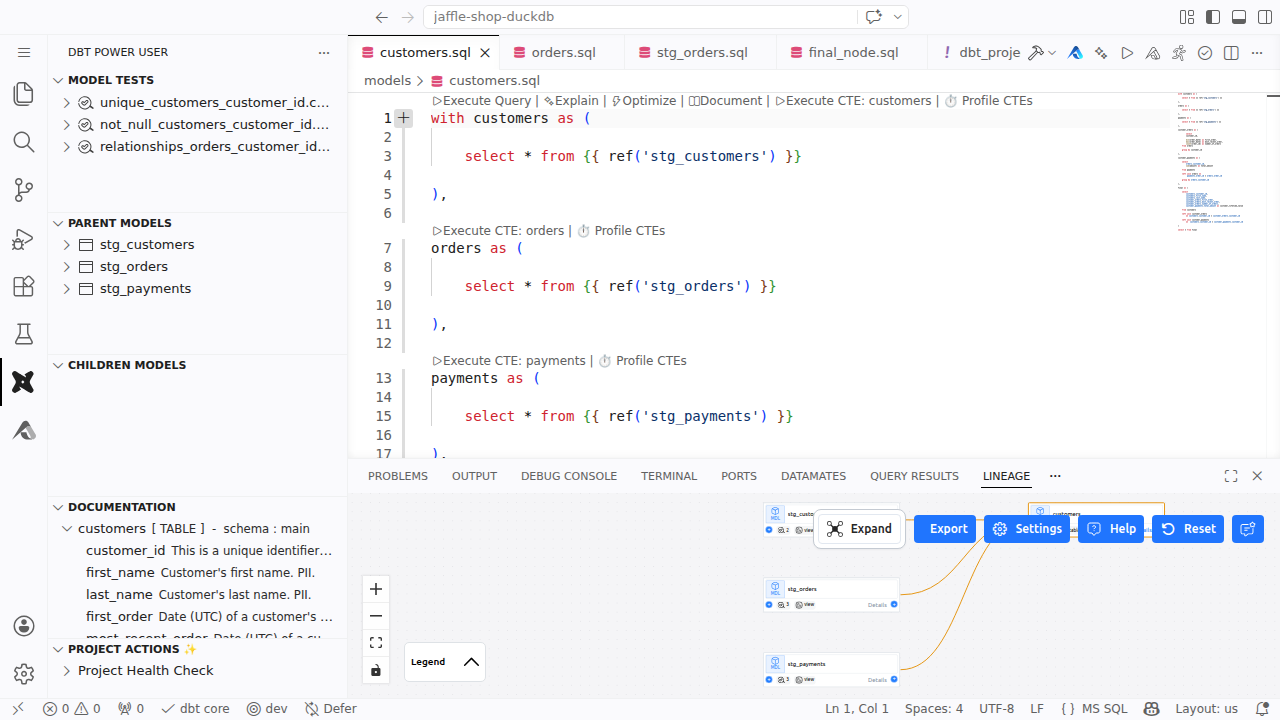

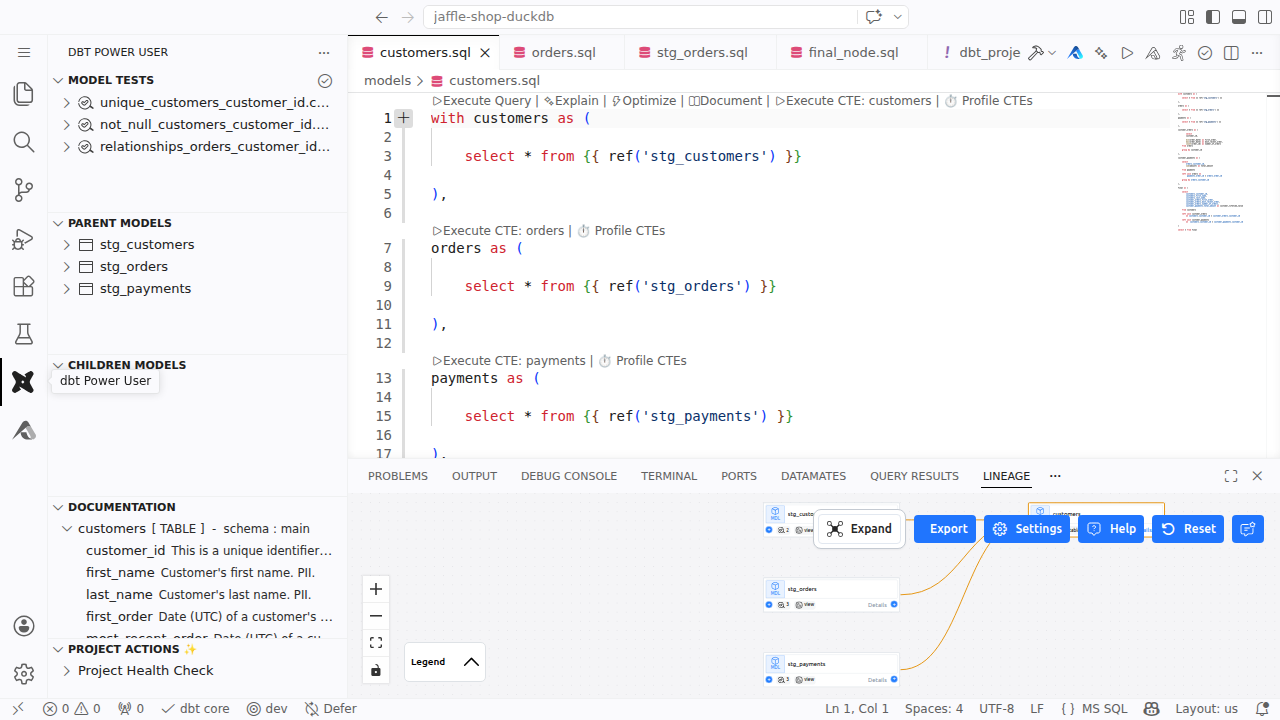

Toolbar before click	Popover open + name typed	After clicking inner Export

Silent failure reproduced — exactly what the customer reports in AI-6465.

Post-fix (fix/AI-6465-export-lineage @ faa424a3)

API key + instance injected into code-server user settings via ALTIMATE_AI_KEY/ALTIMATE_INSTANCE_NAME env vars (local-only docker tweak, not part of this PR's diff).

Step	Observation
1. Click toolbar Export	Popover opens (unchanged)
2. Type verify-AI-6465-fix	Inner Export enables
3. Click inner Export	Popover closes, toast appears: "Lineage is exported at link"
4. Extension log	ProxyResolver#resolveProxy https://api.myaltimate.com/dbt/v4/export-lineage — extension host is making the SaaS call
5. Toast link is the markdown rendering of response.url	success path through ApiHelper.post → executeRequestInSync(\"exportLineage\", …) → altimate.exportLineage(…) → SaaS { url }

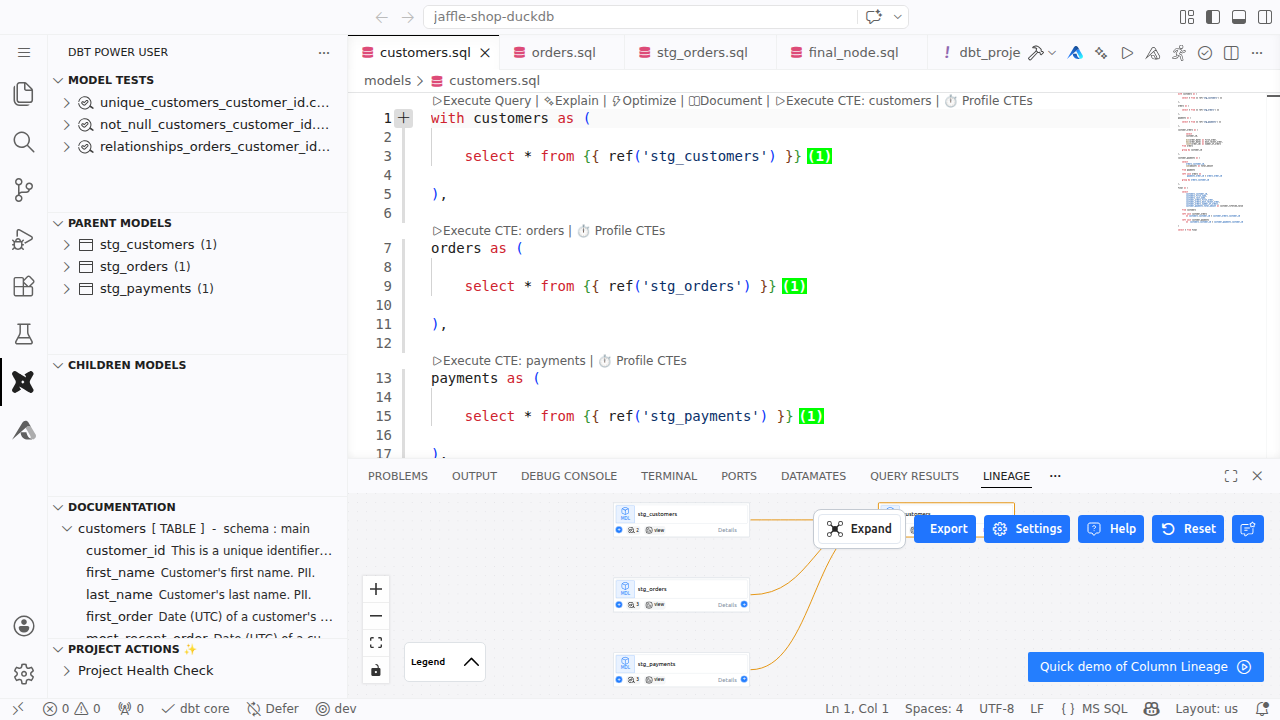

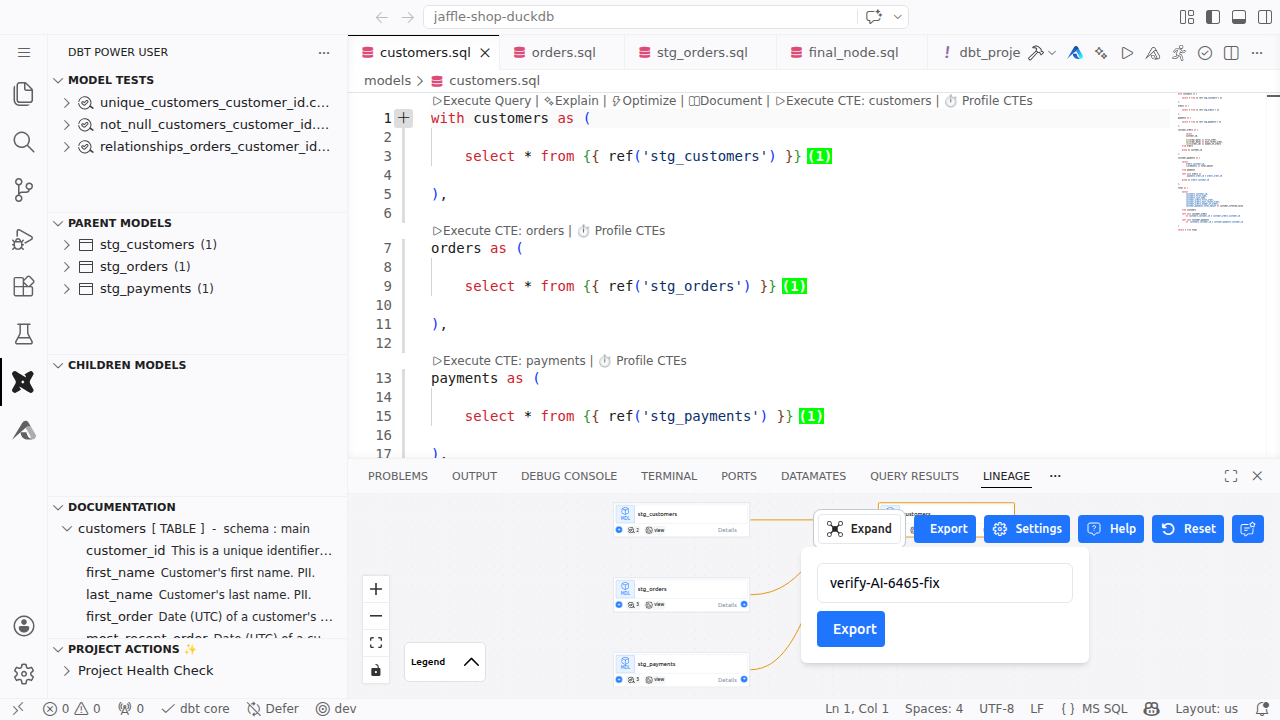

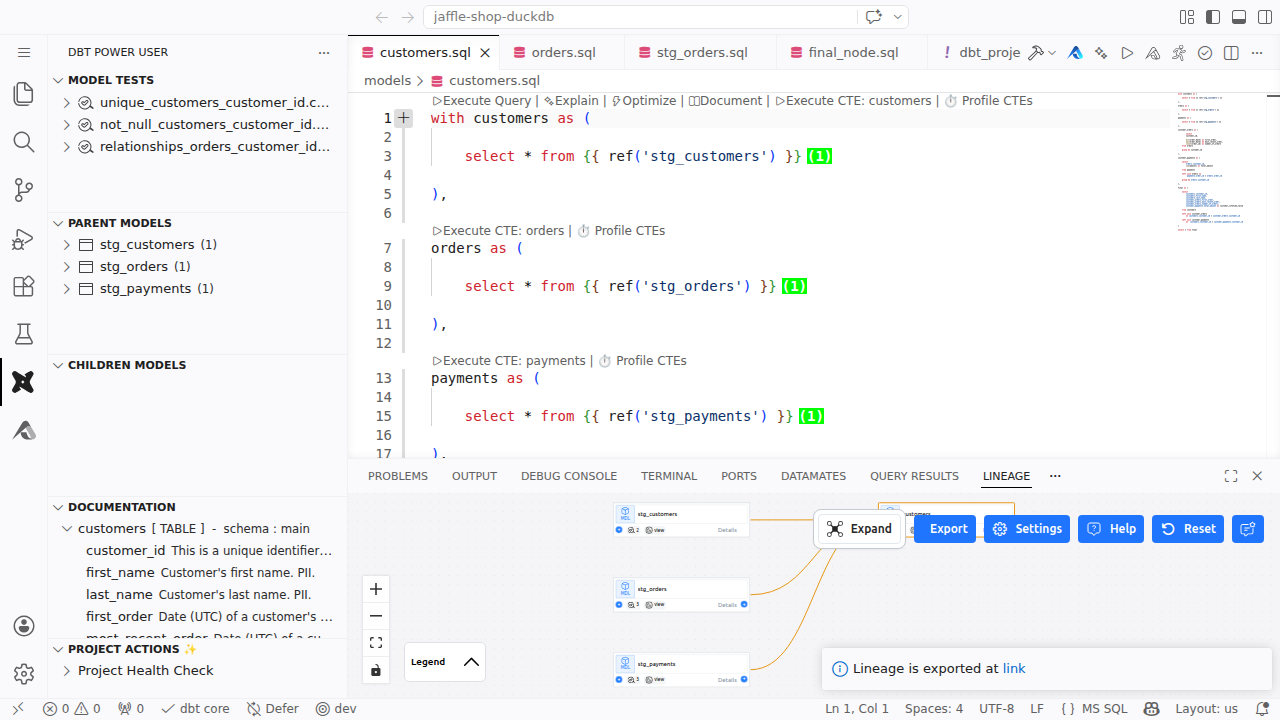

Toolbar after lineage render	Popover open + name typed	After clicking inner Export

Regression sweep

• Lineage render, expand, settings, reset — unchanged (touched files don't intersect)
• sendFeedback path uses ApiHelper.get, untouched
• Jest altimate.test.ts + newLineagePanel.test.ts: 9/9 pass
• Typecheck (extension + webview): 0 new errors
• Bundles: exportLineage symbol present in dist/extension.js; dbt/v4/export-lineage route present in webview_panels/dist/assets/main.js

Artifact branch

Screenshots are on the orphan branch screenshots/AI-6465 — not part of this PR's diff. Safe to delete after merge.

[dev-punia-altimate]

✅ Tests — All Passed

cc @ralphstodomingo
