Add CopilotKit agent framework guide#1031

Open
jerelvelarde wants to merge 6 commits into
ArcadeAI:mainfrom
jerelvelarde:add-copilotkit-agent-framework-guide
Open

Add CopilotKit agent framework guide#1031
jerelvelarde wants to merge 6 commits into
ArcadeAI:mainfrom
jerelvelarde:add-copilotkit-agent-framework-guide

Conversation

@jerelvelarde

@jerelvelarde jerelvelarde commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown

What this PR does

Adds a CopilotKit guide to the agent-frameworks section, mirroring the existing Mastra and Vercel AI framework pages.

This is the reciprocal of CopilotKit/CopilotKit#5514, where Arcade added a CopilotKit cookbook recipe into CopilotKit's docs — this PR brings the equivalent "use Arcade with CopilotKit" guide into the Arcade docs.

The guide gives a CopilotKit Built-in Agent OAuth-backed Arcade tools (Gmail, Google News) and renders Arcade's one-time authorization step as a generative-UI Connect card in the chat. It covers:

  • wrapping Arcade tools with defineTool
  • the authorize-then-execute pattern (runArcadeTool)
  • mounting the agent on a single-route CopilotRuntime
  • rendering the authorization step as generative UI with useRenderTool

Changes

  • New page: app/en/get-started/agent-frameworks/copilotkit/page.mdx
  • Nav: registered copilotkit in app/en/get-started/agent-frameworks/_meta.tsx
  • Card: added a CopilotKit card to the JavaScript tab in app/_components/agent-framework-tabs.tsx
  • Icon: public/images/icons/copilotkit.svg (official CopilotKit mark)
  • Test: tests/copilotkit-guide.test.ts (contract test, written test-first)

Testing

  • pnpm test — full suite green (57 files, 742 tests), including broken-link-check and internal-link-check with the new page present
  • pnpm exec ultracite check — clean on the changed files
  • New page compiles via @mdx-js/mdx
  • Internal links limited to verified routes (/resources/integrations, /guides/user-facing-agents/secure-auth-production); all CopilotKit links point to https://docs.copilotkit.ai; no absolute docs.arcade.dev links

next build was not run locally (full-site build) — relying on CI. Vale isn't installed in the authoring environment, so please confirm pnpm vale:check in CI/review.

Review

A 7-reviewer code-review pass ran on the diff. Fixes applied (commit Harden the CopilotKit guide after code review):

  • False-success render path: the success card now renders only on the positive authorizationRequired === false discriminant; an unparseable/missing tool result renders an error card instead of a green "sent" card (it previously contradicted the guide's own "failures come back as data" Callout).
  • Restored a "Before you expose this publicly" warning callout (authenticate the runtime, scope every call to a server-verified user, disposable keys + rate limiting + security headers).
  • Tightened the contract test and bumped the Node prerequisite to 20+.

Verified-and-dismissed: Gmail.ListEmails correctly takes n_emails (per the repo's own toolkit-docs-generator/data/toolkits/gmail.json); GuideOverview/DashboardLink are global components in mdx-components.ts. Deferred as matching the upstream Arcade-authored recipe / SDK contract: the success === false check and the runtime auth gate's dev-open default (the restored callout documents the hardening).

Optional follow-up

  • Deep-link the "CopilotKit concepts" bullets to specific docs pages rather than the docs homepage (left as the root URL because specific paths weren't verified).

🤖 Generated with Claude Code

@jerelvelarde @claude
Add CopilotKit agent framework guide
ae3965b
Add a guide for using Arcade tools with CopilotKit, mirroring the existing
Mastra and Vercel AI framework pages. It covers wrapping Arcade tools with
defineTool, the authorize-then-execute pattern, a single-route CopilotRuntime,
and rendering the authorization step as generative UI with useRenderTool.

- New page: app/en/get-started/agent-frameworks/copilotkit/page.mdx
- Register the page in agent-frameworks/_meta.tsx
- Add a CopilotKit card to the JavaScript tab in agent-framework-tabs.tsx
- Add public/images/icons/copilotkit.svg
- Add tests/copilotkit-guide.test.ts (contract test, written test-first)

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@vercel

vercel Bot commented Jun 24, 2026

Copy link
Copy Markdown

@jerelvelarde is attempting to deploy a commit to the Arcade AI Team on Vercel.

A member of the Team first needs to authorize it.

jerelvelarde and others added 4 commits June 24, 2026 07:55
@jerelvelarde @claude
Use the official CopilotKit logo mark
9e9f6f2
Replace the placeholder icon with CopilotKit's authoritative brand mark
and drop invertInDark on the card, since the mark is full-color (matching
the CrewAI / Google ADK full-color icon pattern rather than the monochrome
invert pattern).

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@jerelvelarde @claude
Harden the CopilotKit guide after code review
261d977
A 7-reviewer pass surfaced a false-success render path and a dropped
security note; fix both and tighten the contract test.

- Render: show the "email sent" card only on the positive success
  discriminant (authorizationRequired === false). An unparseable or
  missing tool result now renders an error card instead of a false
  green "sent" card, in both the inline snippet and the full-file
  listing. This matches the guide's own "failures come back as data"
  Callout, which the render layer previously contradicted.
- Restore a "Before you expose this publicly" warning callout
  (authenticate the runtime, scope every call to a server-verified
  user, disposable keys + rate limiting + security headers) that the
  adaptation had dropped from the upstream recipe.
- Bump the Node prerequisite to 20+ (the CopilotKit v2 / Next.js stack
  needs it; Node 18 is end-of-life).
- Tighten the contract test: assert the _meta key and title together,
  require non-empty frontmatter values, check the SVG closing tag, and
  hoist regexes to module scope. Update the stale header comment.

Deferred as matching the authoritative Arcade-authored recipe / SDK
contract: the success===false failure check and the runtime auth gate's
dev-open default (the restored callout documents the hardening steps).

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@jerelvelarde @claude
Fix Nextra compile error: use filename= on code fences
94385eb
`title=` on code fences (carried over from the upstream Starlight-based
recipe) broke Nextra's rehype pipeline with "Cannot convert undefined or
null to object", returning a 500 for the page. The Arcade docs use
`filename=` for code-block labels (150 existing usages); switch all six
fences to match. Caught by rendering the page in the local dev server —
the unit tests and an mdx-js compile check don't exercise Nextra's loader.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@jerelvelarde @claude
Add page title and a CopilotKit scaffold command
efb0015
Local preview review surfaced two gaps:
- The page rendered no title. Nextra does not promote the frontmatter
  `title` to an on-page H1 (the Vercel AI guide includes an explicit
  one); add `# Build an AI agent with Arcade and CopilotKit`.
- Step 1 linked to the quickstart but showed no create command, unlike
  the Mastra/Vercel guides. Add `npx copilotkit@latest init` (CopilotKit
  CLI) in the package-manager tabs before the Arcade SDK install.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@jerelvelarde

jerelvelarde commented Jun 24, 2026

Copy link
Copy Markdown
Author

Heads up for review: the <button>-in-<button> hydration errors visible on this page come from a pre-existing bug in the glossary auto-linker (lib/remark-glossary.ts), not this page's MDX — a term-dense page just surfaces it. Fix filed separately in #1032 to keep this PR scoped to docs content.

@jerelvelarde

jerelvelarde commented Jun 24, 2026

Copy link
Copy Markdown
Author

📸 Preview

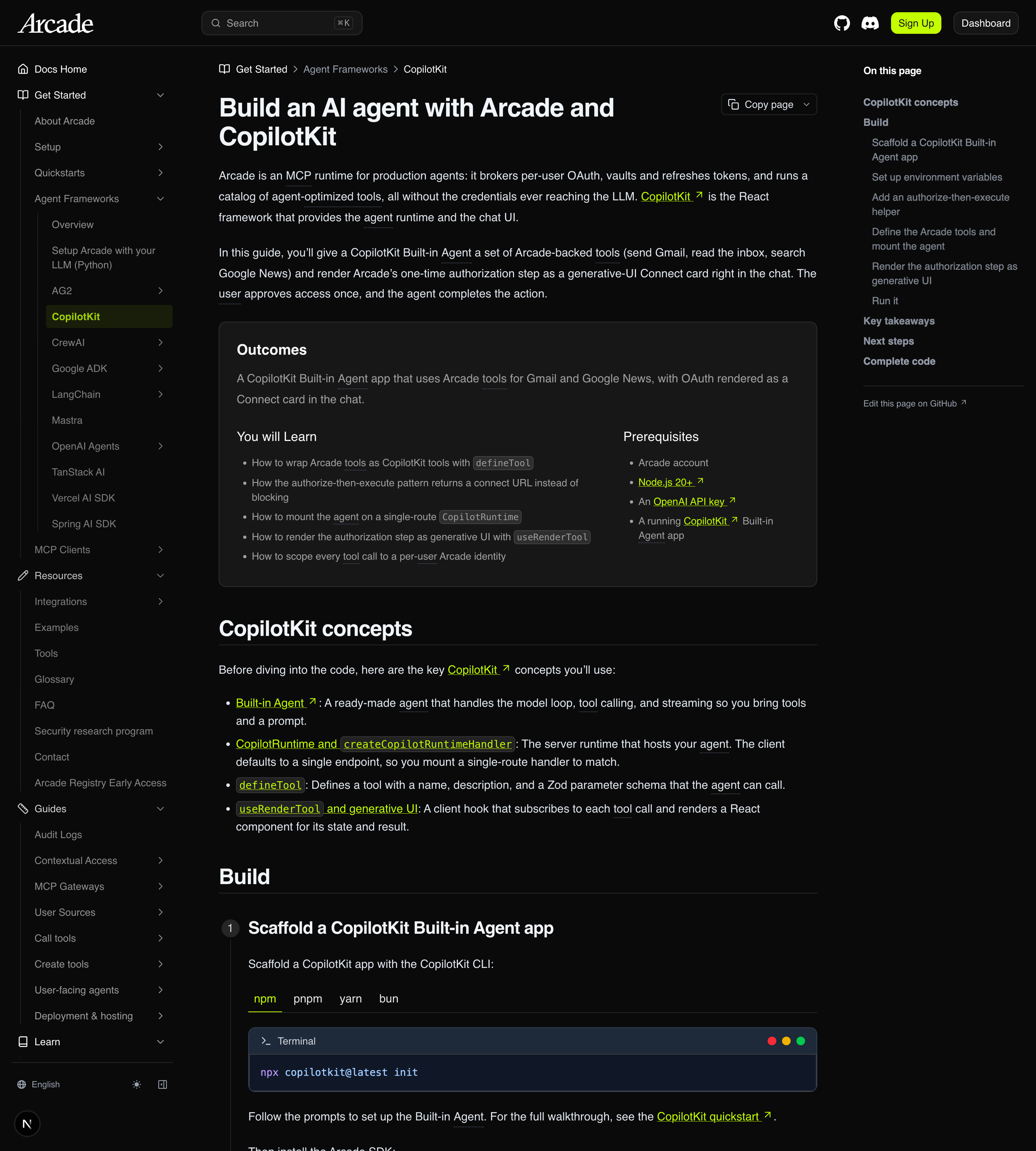

The new guide rendered locally at /en/get-started/agent-frameworks/copilotkit:

CopilotKit × Arcade guide

Shows the page title, the GuideOverview (outcomes / prerequisites — note Node 20+ / what you'll learn), the CopilotKit concepts list, and step 1 — scaffold with npx copilotkit@latest init, then install the Arcade SDK — plus the new CopilotKit entry in the Agent Frameworks sidebar.

@thierrypdamiba thierrypdamiba self-requested a review June 24, 2026 20:25
@jerelvelarde @claude
docs(copilotkit): fix scaffold path, typed tool result, and provider …
c43db05
…wiring

Validated the guide by building it as a runnable app — a Next.js demo that
reproduces the three "Complete code" files verbatim. The build surfaced fixes:

- Step 1: replace `copilotkit init` (interactive-only, account-gated, and with
  no Built-in Agent template) with `create-next-app` plus explicit installs,
  the path that actually reproduces the app.
- Install `zod` (both files import it; it otherwise resolves only as a peer
  dependency of the CopilotKit packages).
- `app/page.tsx`: parse into a discriminated-union `ToolResult` instead of
  `any`, so the sample passes `eslint` (no-explicit-any) as well as `tsc`.
- Show the `<CopilotKit>` provider wiring (`app/providers.tsx` and
  `app/layout.tsx`); the provider is a client component the prose only described.
- Note that `BuiltInAgent` model ids are `provider/model` strings.

Extend the contract test to lock in these invariants.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@jerelvelarde jerelvelarde marked this pull request as ready for review June 26, 2026 11:39
@jerelvelarde

jerelvelarde commented Jun 26, 2026

Copy link
Copy Markdown
Author

Flipping this out of draft — ready for review. ✅

Heads-up on the red checks: they're all fork-PR infrastructure limitations, not content problems.

  • Vale Style Review — runs an AI review (scripts/vale-style-review.ts) that needs ANTHROPIC_API_KEY / OPENAI_API_KEY; GitHub withholds repo secrets from fork PRs, so it exits before reviewing (ANTHROPIC_API_KEY or OPENAI_API_KEY is required).
  • Generate LLMSTXT — Input required and not supplied: token (it auto-commits via a token forks don't receive).
  • Vercel — the fork-deploy authorization gate.

Every substantive check is green on the head commit: test (full Vitest suite + internal/broken-link checks), External URL check, Verify Deleted Pages Have Redirects, and validate_schemas. Happy to re-run these from a branch on the main repo if you'd like the secret-gated ones to actually execute.

For extra confidence, the code samples were validated by building them as a runnable Next.js app — tsc, eslint, and next build all pass and the chat UI runs live against the v2 single-route runtime. That pass surfaced the fixes in the latest commit: the real scaffold path (create-next-app rather than copilotkit init, which is interactive-only with no Built-in Agent template), a typed tool result that satisfies no-explicit-any, installing zod, and the <CopilotKit> provider wiring.

cc @thierrypdamiba

🤖 Generated with Claude Code
