title Legrand 067767 control via MQTT
description Integrate your Legrand 067767 via Zigbee2MQTT with whatever smart home infrastructure you are using without the vendor's bridge or gateway.
addedAt 2026-01-01 05:27:46 -0800
pageClass device-page

Legrand 067767
Model 067767
Vendor Legrand
Description Wireless Color Ambiance Switch 067767/68/69 - 077710L
Exposes battery, action

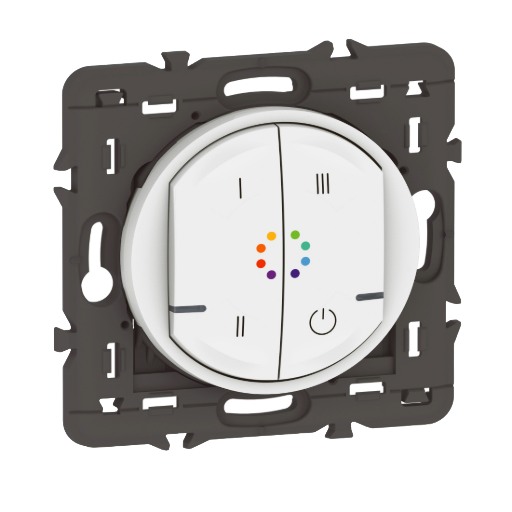

Picture Legrand 067767

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, toggle, brightness_move_to_level, brightness_move_up, brightness_move_down, brightness_step_up, brightness_step_down, brightness_stop.
