title Immax 07768L control via MQTT
description Integrate your Immax 07768L via Zigbee2MQTT with whatever smart home infrastructure you are using without the vendor's bridge or gateway.
addedAt 2025-11-30 12:32:44 -0800
pageClass device-page

Immax 07768L
Model 07768L
Vendor Immax
Description NEO Smart rotary knob
Exposes action_brightness_delta, action_step_size, action_color_temperature_delta, action_transition_time, action_rate, battery, operation_mode, action

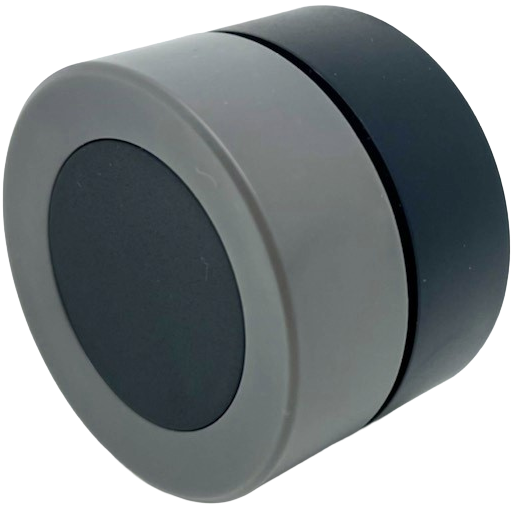

Picture Immax 07768L

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Action brightness delta (numeric)

Value can be found in the published state on the action_brightness_delta property. It's not possible to read (/get) or write (/set) this value. The minimal value is -255 and the maximum value is 255.

Action step size (numeric)

Value can be found in the published state on the action_step_size property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255.

Action color temperature delta (numeric)

Value can be found in the published state on the action_color_temperature_delta property. It's not possible to read (/get) or write (/set) this value. The minimal value is -65535 and the maximum value is 65535.

Action transition time (numeric)

Value can be found in the published state on the action_transition_time property. It's not possible to read (/get) or write (/set) this value. The unit of this value is s.

Action rate (numeric)

Value can be found in the published state on the action_rate property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Operation mode (enum)

Operation mode: "command" - for group control, "event" - for clicks. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: command, event.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: toggle, brightness_step_up, brightness_step_down, color_temperature_step_up, color_temperature_step_down, saturation_move, hue_move, hue_stop, single, double, hold, rotate_left, rotate_right.
