Extension Development

Aurora Music have implemented the support for Extensions (1: Extend your app with services, extensions, and packages, 2: Create and consume an app service). Here's what extensions in Aurora Music can do:

• Perform as a lyric provider
• Perform as an online music provider
• Perform as an online metadata provider

You can get the full sample here

How It Works

Just as what you see in the link above, Aurora Music uses Windows.ApplicationModel.Extensions namespace to retrieve installed extensions, and uses Windows.ApplicationModel.AppService to call a specific service associated with an extension. In UWP, AppService is just like web service, we send query strings to it and wait for a response. So, it is easy to implement an extension in the following steps:

1. Complete app declaration in appxmanifest
2. Write the code of your core service
3. Implement Background Task and AppService Handler

When Submitting to Store

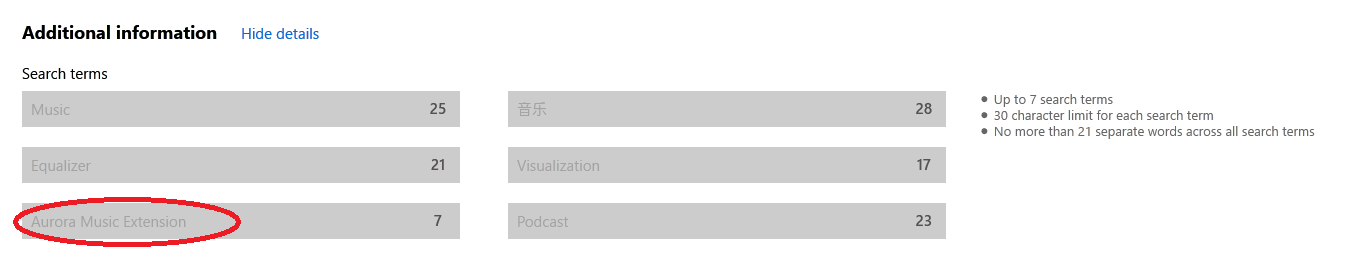

Because Windows Store doesn't have the ability to search an extension now, we recommend you to add a search term: Aurora Music Extension in "Submission - Store listing - Addtional information", like this:

Sample: A Simple Lyric Provider

Now, it's play time, You can follow these steps to create a basic extension!

Modify the APPXManifest

To declare your app as an extension, you should add these lines to the Package.appxmanifest. First, you should check if it already included such namespaces at the first line:

<Package xmlns="http://schemas.microsoft.com/appx/manifest/foundation/windows10"
         xmlns:mp="http://schemas.microsoft.com/appx/2014/phone/manifest"
         xmlns:uap="http://schemas.microsoft.com/appx/manifest/uap/windows10"
         xmlns:uap3="http://schemas.microsoft.com/appx/manifest/uap/windows10/3"
         xmlns:uap4="http://schemas.microsoft.com/appx/manifest/uap/windows10/4"
         IgnorableNamespaces="uap mp uap3 uap4">
         ...
         Properties
         ...
</Package>

Then, you should declare this is an appExtension, under the Extension Node:

<Application ...>
    ...
    ...
    <Extensions>
        <uap3:Extension Category="windows.appExtension">
            <uap3:AppExtension Name="Aurora.Music.Extensions" Id="BuiltIn" PublicFolder="Public" DisplayName="Lyric" Description="Aurora Music Lyric Provider">
                <uap3:Properties>
                    <Service>Aurora.Music.Services</Service>
                    <Category>Lyric</Category>
                </uap3:Properties>
            </uap3:AppExtension>
        </uap3:Extension>
    </Extensions>
</Application>

NOTE

1. The Name="Aurora.Music.Extensions" in the uap3:AppExtension node must be "Aurora.Music.Extensions", so the app can recognize. and the Id can't be BuiltIn, it is reserved.

2. The uap3:Properties is a PropertySet, which is a declaration of your extension's features described below:

Key	Value	Description
Service	string	Name of your app service
Category	Lyric;OnlineMusic;OnlineMeta	three kinds: Lyric, OnlineMusic, OnlineMeta, if you provide multiple services, you can join them with;
LaunchUri	string	an activate Uri of your app, optional

---

In this scenario, we add two properties: Service and Category. Service is the name of your app service(added below), Category is what kind of service you would to provide(here is a lyric provider).

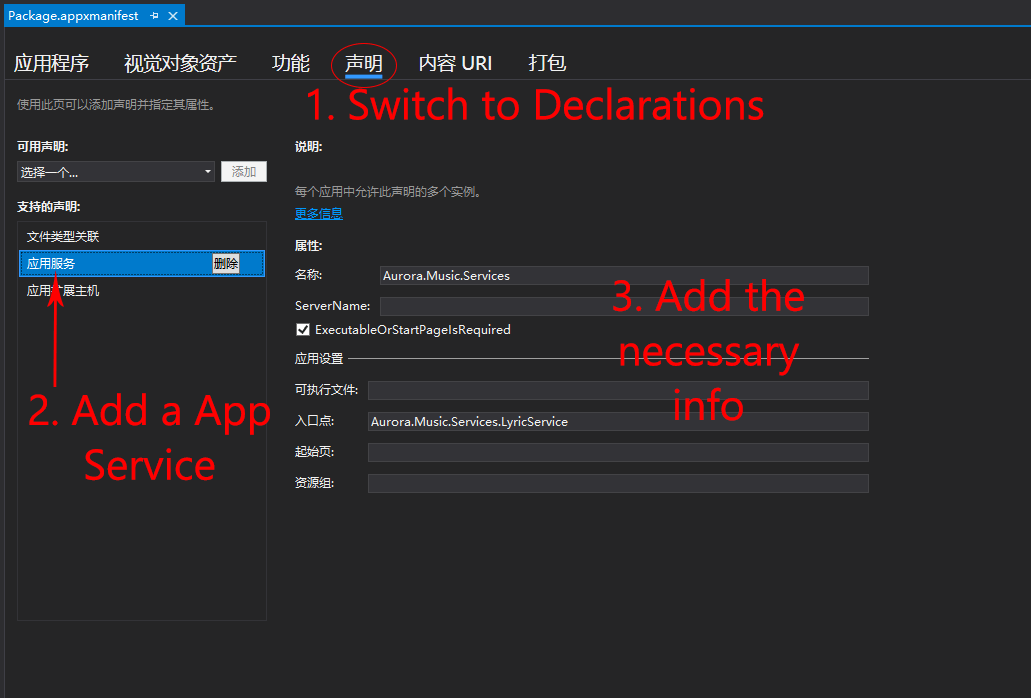

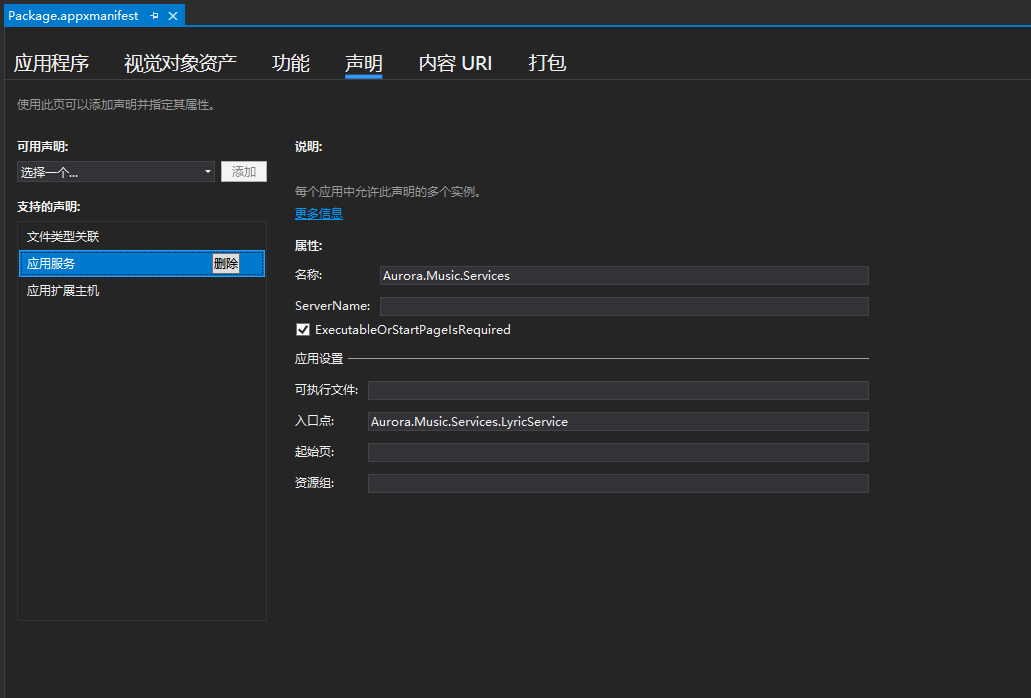

When Providing AppService, you should first declare it, this time you can add it in the manifest manager:

In order to deploy the app service, you need a background task, so you can add a .winmd runtime component to do it. The full description and tutorial is posted on Create and consume an app service.

Handle Request and Send Response

Now, let's see what you will receive when the main app calls your service.

When we call SendMessageAsync in main app, we pass a ValueSet which contains necessary parameters. For lyric extensions, we pass these:

Key	Value	Description
q	"lyric"	The type of request
title	"lorem ipsum"	The title of the song
*artist	"a man"	The performer of the song
*album	"a album"	The album name of the song
*ID	"OnlineID"	If you are an online music provider you may need this

*:optional

NOTICE: Because the tag of the song may be corrupt, so the key: artist or album, may be null or empty.

---

Here's an example:

private async void OnRequestReceived(AppServiceConnection sender, AppServiceRequestReceivedEventArgs args)
{
    // Get a deferral because we use an awaitable API below to respond to the message
    // and we don't want this call to get cancelled while we are waiting.
    var messageDeferral = args.GetDeferral();

    ValueSet message = args.Request.Message;
    ValueSet returnData = new ValueSet();
    string command = message["q"] as string;

    switch (command)
    {
        case "lyric":

            var title = message["title"] as string;
            message.TryGetValue("artist", out object art);
            var artists = art as string;
            message.TryGetValue("album", out object alb);
            var album = alb as string;

            // get lyric from somewhere
            var result = await LyricSearcher.GetLyricAsync(title, artists, album);
            if (result != null)
            {
                returnData.Add("result", result);
                returnData.Add("status", 1);
            }
            else
            {
                returnData.Add("result", null);
                returnData.Add("status", 1);
            }
            break;
        default:
            returnData.Add("status", 0);
            break;
    }

    await args.Request.SendResponseAsync(returnData);
    // Return the data to the caller.
    // Complete the deferral so that the platform knows that we're done responding to the app service call.
    // Note for error handling: this must be called even if SendResponseAsync() throws an exception.
    messageDeferral.Complete();
}

In the returnData above, you should provide:

Key	Value	Description
status	1 or 0	Response is success or failed
result	raw string	The lyric string

The value of result is a string which contain the raw text of a .lrc file, or just plain text with linebreaks. My LrcParser will parse it.

Deploy and Debug

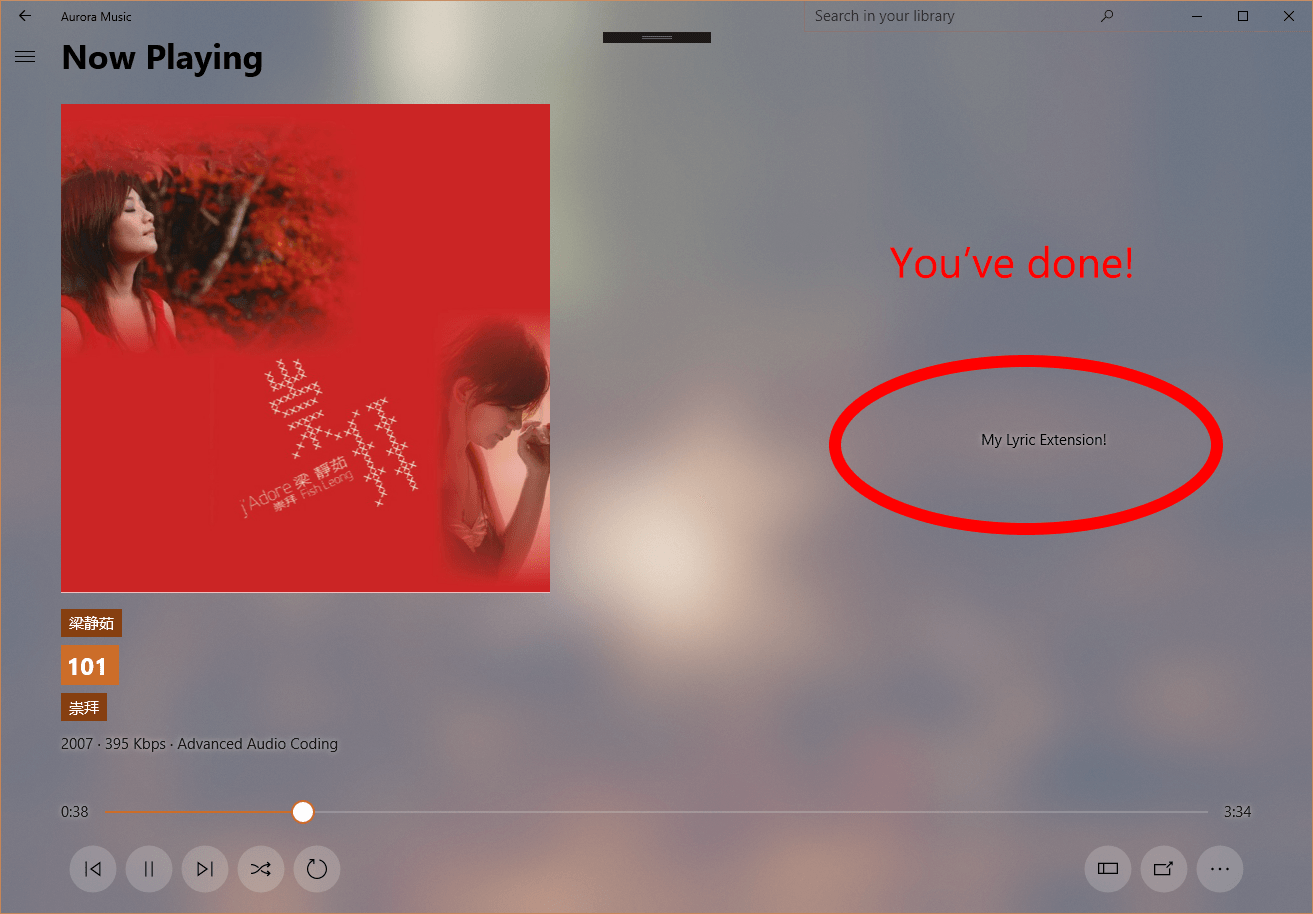

You can get the full example at Samples/ExtensionSample, so how to let the main application know you have added an extension in the computer? Just deploy it in the Visual Studio, and switch the Debug Mode to "On" in Aurora Music->Settings->Advance

All done! Feeling lucky~
