Agent Workflow Platform

An intelligent automation platform that converts natural language commands into scheduled, multi-step agent workflows. Users describe business processes in plain English — e.g., "read my daily emails, find receipts, and upload them to Google Drive" — and the platform orchestrates execution across integrated services.

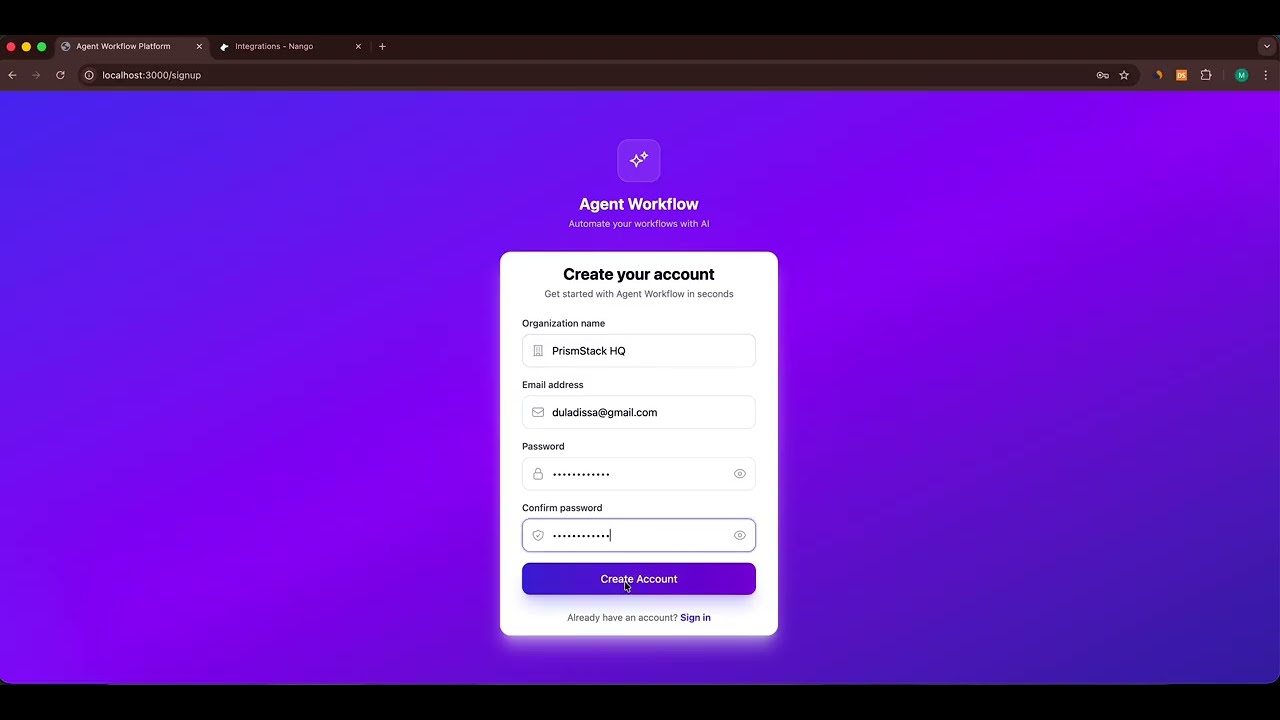

Demo

Architecture

• NestJS microservices (TypeScript) + Python services (FastAPI/LangGraph) communicating via NATS JetStream
• Next.js frontend with real-time WebSocket updates
• PostgreSQL (Prisma ORM) for persistence
• Kubernetes namespace-per-customer isolation with CronJob scheduling

┌─────────────┐     ┌──────────────┐     ┌──────────────────┐
│   Frontend   │────▶│  API Gateway │────▶│  NATS JetStream   │
│  (Next.js)   │     │  (REST BFF)  │     │  (Event Bus)      │
└──────┬───────┘     └──────────────┘     └────────┬──────────┘
       │                                           │
       │ WebSocket                    ┌────────────┼────────────────┐
       ▼                              ▼            ▼                ▼
┌──────────────┐   ┌──────────────┐ ┌────────┐ ┌───────────┐ ┌──────────┐
│  WebSocket   │   │  Onboarding  │ │ Agent  │ │ Scheduler │ │  Agent   │
│  Service     │   │  Service     │ │Builder │ │ Service   │ │ Runtime  │
└──────────────┘   └──────────────┘ │  (Py)  │ └───────────┘ │   (Py)   │
                                    └────────┘               └──────────┘

Prerequisites

• Node.js >= 20
• Python >= 3.11
• Docker & Docker Compose
• Minikube (for K8s deployment)
• kubectl

Quick Start (Docker Compose)

1. Clone and install dependencies

cd agent-workflow-builder
cp .env.example .env
npm install

2. Start everything via Docker Compose

docker compose up --build

3. Run database migrations

cd libs/prisma-client
npx prisma generate
npx prisma migrate deploy
cd ../..

4. Access the application

Service	URL
Frontend	http://localhost:3000
API Gateway	http://localhost:3001/api/v1
WebSocket	ws://localhost:3002/ws
NATS Monitoring	http://localhost:8222

---

Node.js SDK

The @agent-workflow/sdk package (packages/sdk/) provides a typed client for the platform.

Setup

import { AgentWorkflowClient } from '@agent-workflow/sdk';

const client = new AgentWorkflowClient({
  apiKey: 'your-api-key',
  baseUrl: 'http://localhost:3001/api/v1',
  endUserId: 'end-user-123',
});

Parameter	Required	Description
apiKey	Yes	Workspace API key (from org creation)
baseUrl	No	REST API URL (default: http://localhost:3001/api/v1)
endUserId	No	Default end-user ID for commands and connections

Create agents

// Via natural language
const { commandId } = await client.agents.submitCommand(
  'find invoices from my gmail and upload to gdrive',
);

Manage agents and runs

// List all agents
const agents = await client.agents.list();

// Get a specific agent
const agent = await client.agents.get('agent-id');

// Trigger a run
const { runId } = await client.runs.trigger('agent-id');

// List runs for an agent
const runs = await client.runs.list('agent-id');

// Resume a paused run (after OAuth)
await client.runs.resume('agent-id', 'run-id', 'connection-id');

Connections

// Register an end-user connection (after OAuth)
await client.connections.complete(
  'google-mail',       // providerConfigKey
  'nango-conn-abc',    // connectionId
);

// Check connection status
const status = await client.connections.check('google-mail', 'conn-id');

Real-time WebSocket events

// Connect to the WebSocket server
await client.connect();

// Agent lifecycle events
client.on('agent:created', (e) => {
  console.log('Agent created:', e.name, e.agentId);
});

client.on('agent:scheduled', (e) => {
  console.log('Agent scheduled:', e.cronJobName, e.nextRunAt);
});

// Run lifecycle events
client.on('run:started', (e) => {
  console.log('Run started:', e.runId);
});

client.on('run:step_completed', (e) => {
  console.log(`Step ${e.stepIndex} completed:`, e.stepName);
});

client.on('run:paused', (e) => {
  console.log('Run paused — needs OAuth for:', e.providerConfigKey);
  // Show OAuth card to user, then resume:
  // await client.runs.resume(e.agentId, e.runId, connectionId);
});

client.on('run:resumed', (e) => {
  console.log('Run resumed:', e.runId);
});

client.on('run:succeeded', (e) => {
  console.log('Run completed:', e.summary);
});

client.on('run:failed', (e) => {
  console.error('Run failed:', e.error);
});

// Unsubscribe from a specific event
client.off('run:started', handler);

// Disconnect when done
client.disconnect();

Available WebSocket events

Event	Payload fields
agent:created	agentId, name, scheduleCron, status
agent:scheduled	agentId, cronJobName, nextRunAt
run:started	agentId, runId, startedAt
run:step_completed	agentId, runId, stepIndex, stepName
run:paused	agentId, runId, reason, providerConfigKey, actionName, pausedAt
run:resumed	agentId, runId, resumedAt
run:succeeded	agentId, runId, summary
run:failed	agentId, runId, error

Build the SDK

cd packages/sdk && npx tsc

---

Example: Chat App

A standalone Next.js chat application (examples/chat-app/) that demonstrates the full agentic workflow with a real-time chat UI.

Features:

• Real-time WebSocket events (agent creation, step progress, pauses, completions)
• OAuth connection cards with connect/resume flow
• Tool execution results with syntax-highlighted JSON
• Animated thinking indicators and step progress
• Chat history sidebar with connection status

Running the Chat App

Prerequisites: The platform services must be running (via Docker Compose or individually).

# 1. Navigate to the chat app
cd examples/chat-app

# 2. Install dependencies
npm install

# 3. Configure environment
cp .env.local.example .env.local
# Edit .env.local and set your workspace API key:
#   AGENT_WORKFLOW_API_KEY=your-workspace-api-key
#   NEXT_PUBLIC_API_KEY=your-workspace-api-key

# 4. Build the SDK (required — the chat app depends on it)
cd ../../packages/sdk && npx tsc && cd ../../examples/chat-app

# 5. Start the dev server
npm run dev

The chat app runs on http://localhost:3100.

Variable	Description
AGENT_WORKFLOW_API_KEY	Workspace API key (server-side SDK calls)
AGENT_WORKFLOW_API_URL	Platform API URL (default: http://localhost:3001/api/v1)
AGENT_WORKFLOW_WS_URL	Platform WebSocket URL (default: ws://localhost:3002/ws)
NEXT_PUBLIC_WS_URL	WebSocket URL for browser (default: ws://localhost:3002/ws)
NEXT_PUBLIC_API_KEY	API key for browser WebSocket auth

---

LLM-Powered Agent Planner

The agent-builder service uses Claude (via LangGraph) to parse natural language commands into structured execution plans. The planner dynamically discovers available integrations and actions from the tool registry.

How it works:

1. User submits a natural language command
2. LLM calls list_integrations to discover available connectors
3. LLM calls search_tools to find actions for each relevant connector
4. LLM calls check_connection to verify the end user's connections
5. LLM calls submit_plan with a structured execution plan
6. Plan is validated against the tool registry and passed to the runtime

Set the key in .env:

OPENAI_API_KEY=openai_api_key

---

Project Structure

agent-workflow-builder/
├── libs/                        # Shared TypeScript libraries
│   ├── shared-types/            # Event payloads, DTOs, enums
│   ├── nats-client/             # NATS JetStream NestJS module
│   ├── prisma-client/           # Prisma schema + service
│   ├── integration-provider/    # Proxy action registry + declarative config
│   ├── auth/                    # API key guard
│   └── observability/           # OpenTelemetry + pino logger
├── packages/
│   └── sdk/                     # Node.js SDK (@agent-workflow/sdk)
├── services/                    # Backend microservices
│   ├── api-gateway/             # REST API (NestJS, port 3001)
│   ├── onboarding-service/      # Org lifecycle (NestJS)
│   ├── agent-builder-py/        # LLM planner + agent creation (Python/LangGraph)
│   ├── agent-runtime-py/        # Workflow step execution (Python)
│   ├── scheduler-service/       # K8s CronJob management (NestJS)
│   ├── websocket-service/       # Real-time events (NestJS, port 3002)
│   └── shared-py/               # Shared Python library (models, NATS, Nango client)
├── templates/
│   └── proxy-actions/           # JSON proxy action template files
├── frontend/web/                # Next.js admin app (port 3000)
├── examples/
│   └── chat-app/                # Agentic chat UI example (port 3100)
├── deploy/
│   ├── helm/                    # Helm umbrella chart
│   └── k8s/                     # Kustomize manifests
├── docker-compose.yml           # Full stack local dev
└── docker-compose.infra.yml     # Postgres + NATS only

Tech Stack

Component	Technology
Frontend	Next.js 15, Tailwind CSS
Backend (TS)	NestJS 10
Backend (Py)	FastAPI, LangGraph
LLM Planner	Claude (Anthropic)
Event Bus	NATS JetStream
Database	PostgreSQL 16 + Prisma
Auth	API Key + Firebase (frontend)
SDK	TypeScript (Node.js)
Orchestration	Kubernetes
Container	Docker

---

TODO

• Support other integration providers (beyond Nango)
• Enable scheduler service
• Kubernetes support
• Enrich templates/proxy-actions/ with more integration templates
• Usage documentation
• Support Bring Your Own LLM
• Support Bring Your Own RAG

---

This was built with help from Claude Code.
