GitLab CI/CD

What is "GitLab CI/CD"?

GitLab CI/CD is a tool for software development using the continuous methodologies

From: https://docs.gitlab.com/ee/ci/

  • GitLab's integration automation tool
  • Similar to GitHub Actions though details are different
  • Typically (more than for GitHub Actions): self-hosted runners
    • More effort, more flexibility

Components (1/2)

  • Pipelines: Collection of one or more jobs
  • Jobs: Set of steps of a pipeline (same runner)
    • Jobs in one stage my be executed in parallel
  • Stages: Group jobs and determine running order
  • Runner: Server that runs jobs
  • Artifacts: Files to be shared between jobs or to be kept after workflow finishes
  • No "Actions", but instead integrated features
    • Repository checked out by default
    • Handling of artifacts integrated
    • ...

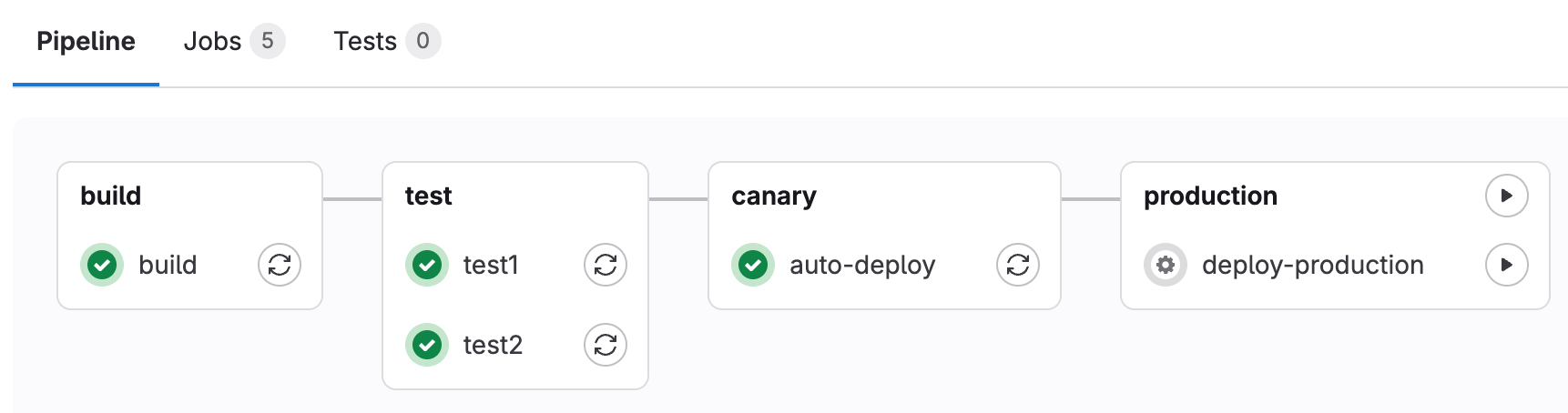

Components (2/2)

From GitLab CI/CD tutorial

Setting up a Workflow/Pipeline

  • Workflow file stored in ${REPO_ROOT}/.gitlab-ci.yml
  • Configured via YAML file
  • Example for a basic pipeline:
stages:
  - build
  - test
  - deploy

image: alpine

build job:
  stage: build
  script:
    - echo "This job builds something."

test job:
  stage: test
  script:
    - echo "This job tests something. It will only run when all jobs in the build stage are complete."

deploy job:
  stage: deploy
  script:
    - echo "This job deploys something. It will only run when all jobs in the test stage complete."

(Environment) Variables

  • Can be set in different scopes

    variables:
  TEST_VAR: "All jobs can use this variable"

job1:
  variables:
    TEST_VAR_JOB: "Only job1 can use this variable"
  script:
    - echo "$TEST_VAR" and "$TEST_VAR_JOB"

  • There are lots of predefined variables

Artifacts

  • Data sharing between jobs and data upload

  • Uploading artifact

    create file:
  script: echo "Content of my file" > my_file.txt
  artifacts:
    paths:
      - my_file.txt
    expire_in: 5 days

  • Downloading artifact

    read file:
  stage: test
  script: cat my_file.txt
  dependencies:
    - create file

Workflow Triggers

  • By default pipelines are created for every commit

  • Filtering by type of events

  • Example: Run job only for merge requests

    job1:
  rules:
    - if: $CI_PIPELINE_SOURCE == 'merge_request_event'

    or

    job1:
  only:
    - merge_requests

GitLab Runner

  • Supports a variety of executors:
    • SSH, Shell, Docker...
  • Allows reusing existing hardware
  • Preconfigured runners available on gitlab.com

Demo: GitLab Runner

  • Installation of a GitLab Runner on a bwCloud VM (via Docker)
  • Registration of the runner to a repository (Docker as executor)

Advanced Topics

Further reading
