title SOMFY 1003296 control via MQTT
description Integrate your SOMFY 1003296 via Zigbee2MQTT with whatever smart home infrastructure you are using without the vendor's bridge or gateway.
addedAt 2025-03-01 12:31:41 -0800
pageClass device-page

SOMFY 1003296
Model 1003296
Vendor SOMFY
Description Sonesse2 28 WF roller shades
Exposes battery, cover (state, position)

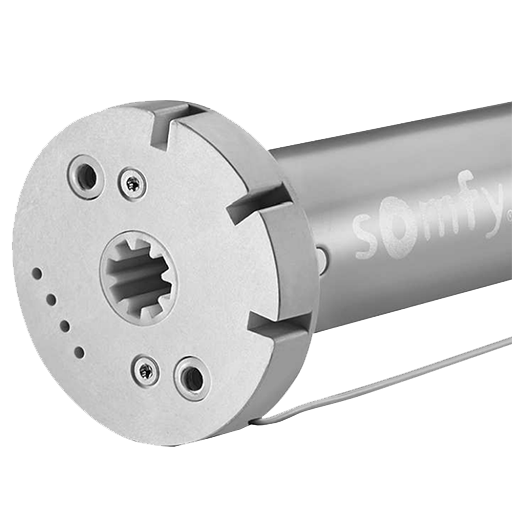

Picture SOMFY 1003296

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

  • cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.
