Add Drop to Bed action for objects, parts, and modifiers#11511

Open
BenJule wants to merge 1 commit into
bambulab:masterfrom
BenJule:feature/drop-to-bed
Open

Add Drop to Bed action for objects, parts, and modifiers#11511
BenJule wants to merge 1 commit into
bambulab:masterfrom
BenJule:feature/drop-to-bed

Conversation

@BenJule

@BenJule BenJule commented Jul 10, 2026

Copy link
Copy Markdown
Contributor

Summary

Add a Drop to bed action to the object manipulation panel for complete object instances, individual parts, and modifiers.

Bambu Studio already contained the minimum-Z calculation and visibility state for this feature, but the action was never exposed in the ImGui interface and full-instance selections always used a zero minimum height.

Changes

  • Add a visible Drop to bed button below the position controls
  • Support complete object instances
  • Support individual parts and modifiers inside assemblies
  • Calculate the correct minimum Z for full-instance selections
  • Move selections along the global Z axis onto the build plate
  • Preserve undo and redo through the existing gizmo snapshot mechanism
  • Hide the button when the selected item is already on the build plate
  • Reset the visibility state when the current selection is unsupported

Testing

  • git diff --check
  • Successfully compiled the affected translation unit:
ninja -C build src/slic3r/CMakeFiles/libslic3r_gui.dir/GUI/Gizmos/GizmoObjectManipulation.cpp.o -j6
  • Re-running the targeted build reports ninja: no work to do, confirming the object file is current
  • No new compiler warnings or errors were introduced

Fixes #5536
Fixes #9076

@BambulabRobot
BambulabRobot requested a review from Haidiye00 July 10, 2026 22:29

@Haidiye00 Haidiye00 left a comment

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Hi, please record the GIF effect after the changes, thanks

@BenJule

BenJule commented Jul 13, 2026

Copy link
Copy Markdown
Contributor Author

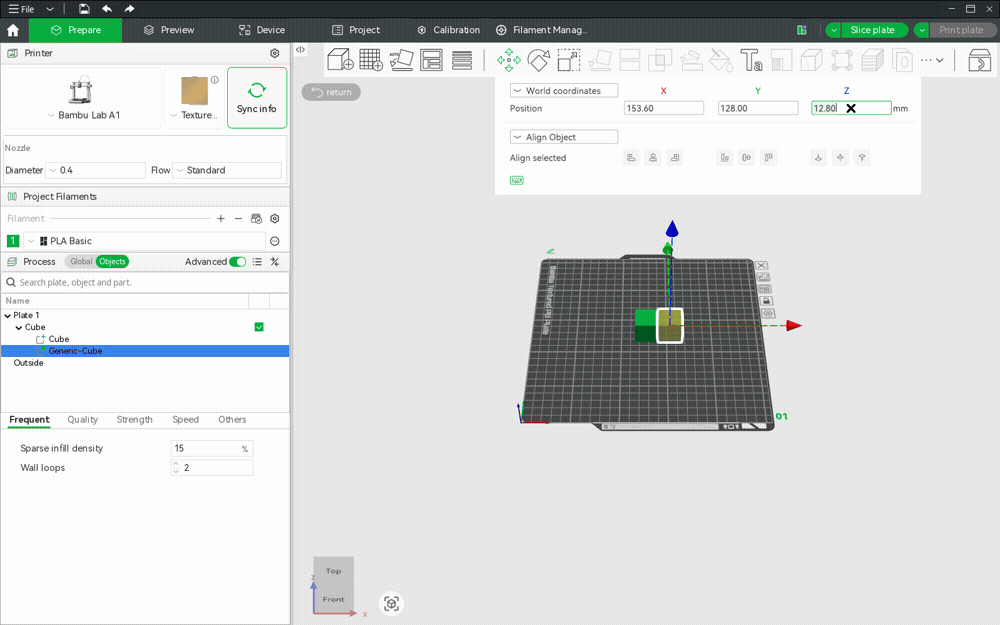

Here's a quick demo of the Drop to Bed action:

demo

@BenJule
BenJule requested a review from Haidiye00 July 13, 2026 21:38
