Add multiline Text Shape with wrap, shrink, and surface following#11592

Open
rhys100 wants to merge 1 commit into
bambulab:masterfrom
rhys100:feature/text-shape-multiline
Open

Add multiline Text Shape with wrap, shrink, and surface following#11592
rhys100 wants to merge 1 commit into
bambulab:masterfrom
rhys100:feature/text-shape-multiline

Conversation

@rhys100

@rhys100 rhys100 commented Jul 17, 2026

Copy link
Copy Markdown

Summary

What changed

  • Emboss::apply_text_wrap / fit_text_to_box for layout preprocess
  • GenerateTextJob baked layout for horizontal multiline; surface multiline uses create_text_lines + sample_slice
  • Text tool UI: Auto wrap, Auto shrink, Wrap width / height, Line gap
  • Font version bumped to 2.7

Test plan

  • Type multiline text with Enter — lines stack on flat/horizontal text
  • Enable Auto wrap + set Wrap width — long text wraps onto new lines
  • Enable Auto shrink + Wrap width/height — font size reduces to fit the box
  • Place multiline text on a curved surface — each line follows the surface
  • Save / reload 3MF — newlines, wrap settings, and line gap survive
  • Confirm single-line text behaviour is unchanged

Fixes #1095
Related #2086

@Haidiye00

Copy link
Copy Markdown
Contributor

Hello, please use GIF software to record the modified effect. Thank you

@Haidiye00

Copy link
Copy Markdown
Contributor

Hello, it is recommended to combine two patches into one patch. Thank you

@rhys100
rhys100 force-pushed the feature/text-shape-multiline branch from 99a364f to 5269e27 Compare July 18, 2026 06:45
Support Enter/newlines in Text Shape, auto-wrap/shrink-to-box controls, line gap, newline-safe 3MF persistence, and per-line surface contour placement for curved text.

Includes a short feature demo GIF for reviewers under pr-media/.

Co-authored-by: Cursor <cursoragent@cursor.com>
@rhys100
rhys100 force-pushed the feature/text-shape-multiline branch from 5269e27 to a976392 Compare July 18, 2026 06:46
@rhys100 rhys100 changed the title Add multiline Text Shape support (Enter / line breaks) Add multiline Text Shape with wrap, shrink, and surface following Jul 18, 2026
@rhys100

rhys100 commented Jul 18, 2026

Copy link
Copy Markdown
Author

Thanks for the review notes — both addressed:

  1. Combined into one commit (force-pushed).

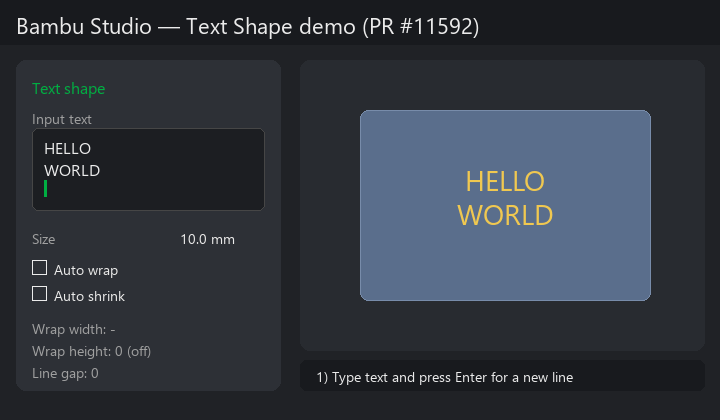

  2. Demo GIF of the updated Text Shape behaviour:

https://raw.githubusercontent.com/rhys100/BambuStudio/feature/text-shape-multiline/pr-media/pr-11592-text-shape-demo.gif

Also in the branch at pr-media/pr-11592-text-shape-demo.gif.

It shows:

  • Enter / multiline input
  • Auto wrap into a width box
  • Auto shrink to fit height
  • Multiline text following a curved surface

Happy to replace this with a live Bambu Studio screen recording if you prefer that format.
