Support cross-compiling to Android with a Swift SDK#1818

Merged
keith merged 8 commits into
bazelbuild:mainfrom
AttilaTheFun:android-support
Jul 2, 2026
Merged

Support cross-compiling to Android with a Swift SDK#1818
keith merged 8 commits into
bazelbuild:mainfrom
AttilaTheFun:android-support

Conversation

@AttilaTheFun

@AttilaTheFun AttilaTheFun commented Jun 23, 2026

Copy link
Copy Markdown
Contributor

Android support, part of the #1809 split, on top of the now-merged foundation
PRs #1820 (swift_binary(linkshared)) and #1821 (Swift-SDK framework). A sibling
of the WebAssembly PR (#1817); it does not depend on it.

What this adds

swift.android_sdk downloads the swift.org Android Swift SDK bundle and, using
the shared framework (#1821), defines a Swift toolchain targeting
{aarch64,x86_64}-unknown-linux-android. swift_binary(linkshared = True)
produces a JNI lib<name>.so whose entry points are written entirely in Swift.
examples/cross_compilation/android_app builds one and ships a complete,
runnable Android app
that loads it and shows the Swift-computed greeting on
screen — with nothing preinstalled (no Android Studio, no device), one command
boots a hermetic emulator, installs, and launches it:

bazel run //examples/cross_compilation/android_app:run

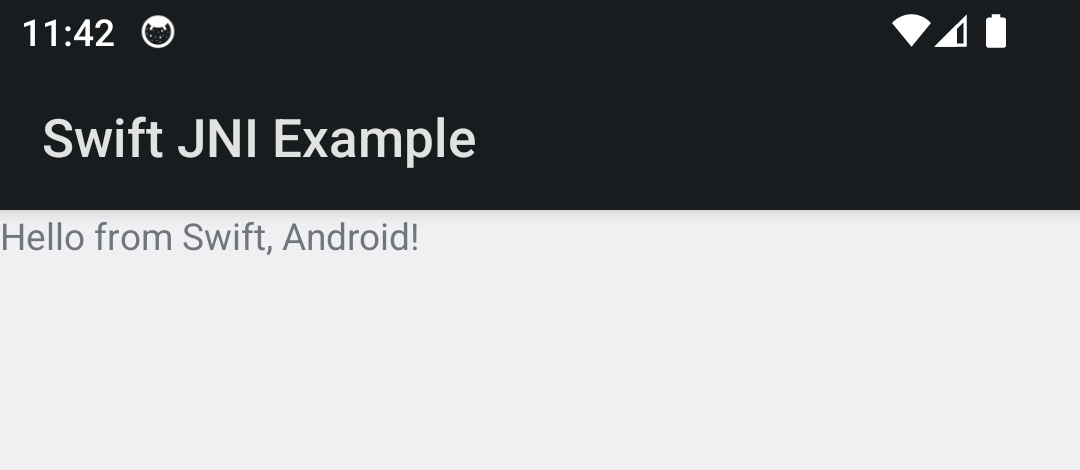

The example app running on an Android emulator, showing "Hello from Swift, Android!"

The NDK comes from a cc toolchain, not from rules_swift

Per review feedback, rules_swift does not fetch or manage the NDK. C/C++
compilation and linking for Android targets go through a separately registered
Android C++ cc toolchain, and the Swift toolchain reads that toolchain's sysroot
at analysis time. So you bring an Android cc toolchain — e.g. @androidndk//:all
from hermetic_android_toolchains
— and register it alongside the Swift toolchain:

register_toolchains(
    "@swift_toolchain//:swift_toolchain_android_aarch64_xcode",
    "@androidndk//:all",
)

This keeps rules_swift out of the NDK-management business entirely (no NDK
download, no per-host repos, no bespoke C++ toolchain) and works with any
rules_android_ndk-based Android cc toolchain.

A few NDK-integration details that aren't obvious:

  • CcToolchainInfo.sysroot from rules_android_ndk's toolchain reports the clang
    directory, not the sysroot, so the Swift toolchain derives the sysroot from the
    toolchain's files.
  • The Swift binary link runs through cc_common.link with that cc toolchain, but
    rules_android_ndk reports its sysroot as the clang dir and exposes an empty
    dynamic_runtime_lib, so the toolchain adds --sysroot and stages
    libc++_shared.so itself. It also links libc++ as the shared runtime
    (rules_android_ndk links it statically by default — rules_android_ndk#93).
  • To package libc++_shared.so into an APK, select_android_runtime_lib (in
    swift/toolchains/android_runtime_lib.bzl) selects it from the resolved cc
    toolchain.

The runnable example (examples/cross_compilation/android_app)

A real android_binary (built with rules_android + rules_kotlin, the
real-world way Android apps are packaged) completes the chain end-to-end:
MainActivity.kt → NativeBridge.greetingFromSwift() (Kotlin, JNI) →
libSwiftJNI.so (swift_binary(linkshared), @_cdecl) → Greeter
(swift_library).

The one rules_swift-specific detail: swift_binary(linkshared = True) exposes
its .so via DefaultInfo, not CcInfo, so it can't go straight into
android_binary.deps. Wrapping it in a cc_library (a prebuilt .so in srcs
becomes a CcInfo dynamic library) lets android_binary's per-ABI native split
collect it into lib/arm64-v8a/; libc++_shared.so goes in the same way via
select_android_runtime_lib.

rules_android / rules_kotlin / rules_java / rules_jvm_external (and the
hermetic emulator the :run target downloads) are all dev_dependency = True,
split into android_app/android.MODULE.bazel and include()d, with a pinned
Maven lock and the hermetic @androidsdk — so consumers of rules_swift are
unaffected and protobuf stays at 34.

CI

The example builds and tests in the normal macOS //examples/... job (the
@androidndk/@androidsdk toolchains come from hermetic_android_toolchains, dev
dependencies; the arm64 --android_platforms + a hermetic JDK are set in
.bazelrc). No emulator runs in CI; instead the Android path is guarded by:

  • Analysis tests (//test:android) asserting the action command lines — the
    Swift compile targets aarch64-linux-android, and the link runs the NDK clang
    for the Android target against the NDK sysroot, linking the shared libc++ and
    staging libc++_shared.so.
  • Artifact tests (build_test) running the NDK llvm-readelf on the built
    .so (AArch64 ELF, libc++_shared.so in NEEDED, the @_cdecl symbol
    exported in .dynsym) and asserting the APK packages both .sos under
    lib/arm64-v8a/ plus the dexed Kotlin.

Comment thread .bazelci/presubmit.yml Outdated
Comment thread .bazelci/presubmit.yml Outdated
Comment thread examples/cross_compilation/Sources/Greeter/Greeter.swift Outdated
Comment thread examples/cross_compilation/Sources/SwiftJNI/SwiftJNI.swift Outdated
Comment thread examples/cross_compilation/BUILD.bazel Outdated
Comment thread examples/cross_compilation/android_app/BUILD.bazel Outdated
Comment thread swift/toolchains/swift_toolchain.bzl Outdated
Comment thread swift/extensions.bzl Outdated
Comment thread swift/extensions.bzl Outdated
Comment thread swift/extensions.bzl Outdated
Add `swift.android_sdk`, which downloads the swift.org Android Swift SDK bundle
and defines a Swift toolchain targeting {aarch64,x86_64}-unknown-linux-android.
`swift_binary(linkshared = True)` produces a JNI lib<name>.so whose entry points
are written entirely in Swift; examples/cross_compilation builds one.

rules_swift does not fetch or manage the Android NDK. C/C++ compilation and
linking go through a separately registered Android C++ cc toolchain (e.g.
@androidndk//:all from hermetic_android_toolchains), and the Swift toolchain
reads that toolchain's sysroot at analysis time. Register one alongside the
Swift toolchain.

A few NDK-integration details handled in the Swift toolchain rule:
- rules_android_ndk's CcToolchainInfo.sysroot reports the clang dir, not the
  sysroot, so we derive the sysroot from the toolchain's files.
- The Swift link action drives the NDK clang directly and bypasses the cc
  toolchain's sysroot/runtime-lib link features, so for Android we add --sysroot
  and stage libc++_shared.so (which the NDK clang links by default) into the
  link ourselves.
- select_android_runtime_lib selects libc++_shared.so from the resolved cc
  toolchain for APK packaging.

Verified end to end: //examples/cross_compilation:libSwiftJNI.so builds a real
aarch64 Android .so linked through @androidndk, and a downstream app packages it
into a working APK alongside libc++_shared.so.
…Swift)

The cross_compilation example previously built only the JNI .so and documented
(in prose) how a downstream module would package it into an APK. Replace that
recipe with a real, building android_binary that runs on a device/emulator and
shows the Swift greeting on screen — a far more compelling demonstration of
integrating Swift into an Android app.

It's packaged the real-world way, with rules_android (android_binary) and
rules_kotlin (kt_android_library). The one rules_swift-specific detail: the
swift_binary(linkshared) .so arrives via DefaultInfo (not CcInfo), so it's
wrapped in a cc_library to feed android_binary's per-ABI native split; libc++
is selected via select_android_runtime_lib the same way.

rules_android/rules_kotlin/rules_java/rules_jvm_external are all dev_dependency
deps (with a pinned Maven lock and the hermetic @AndroidSDK), so consumers of
rules_swift are unaffected. CI builds the APK via a build_test under
--config=android_example (scoped flags; the rest of the build is untouched).

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
Toolchain:
- Keep file_prefix_map enabled for Android (hermetic working-dir remap) instead
  of disabling it; the worker only requires DEVELOPER_DIR for the Apple
  developer-dir remap, so guard that remap on DEVELOPER_DIR being set (a cross
  compile on a macOS host has none). Fixes non-hermetic debug info.
- Extract the Android link logic into _swift_android_linkopts_cc_info keyed on
  os == "android"; drop the redundant -lm (the clang driver links libm anyway;
  -lstdc++ stays, since it selects the shared libc++_shared.so the SDK intends).
- Rename the SDK repo's host_swiftc attr to paired_swiftc.
- Trim verbose comments/docs across the toolchain and extensions; simplify the
  clang-only error message.

Example (//examples/cross_compilation/android_app):
- Consolidate the Swift sources, Kotlin app, and BUILD into android_app/.
- Build the .so as a dep of android_binary (its native split configures it for
  Android) instead of a hand-written platform transition; use the platforms
  rules_android exposes (@rules_android//:arm64-v8a) rather than a custom one.
- Drop the manual tags; mark the Android-only targets target_compatible_with
  os:android so the //examples/... wildcard skips them on a host and the example
  runs in the normal macOS CI job. Remove the dedicated cross-compilation task.
- Split the example's dev dependencies into android_app/android.MODULE.bazel,
  include()d from the root MODULE; move the Maven lock out of the repo root;
  link rules_android#485 for the maven.install requirement.
- Set the rules_android flags (android_platforms + hermetic JDK) globally rather
  than behind a --config.

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
Per review, guard the Android cross-compile on CI without a device.

Analysis tests (//test:android, macOS) assert the action command lines:
- the Swift compile targets aarch64-linux-android,
- the link runs the NDK clang for the Android target against the NDK sysroot
  and links libc++ as the shared libc++_shared.so, and
- libc++_shared.so is staged into the link.

Artifact tests on the example (run via build_test) cover what a build can't see:
- android_so_abi_check runs the NDK llvm-readelf on the built .so to assert it
  is an AArch64 ELF that lists libc++_shared.so in NEEDED and exports the @_cdecl
  JNI entry point in .dynsym;
- android_apk_contents_check asserts the APK packages both .so files under
  lib/arm64-v8a/ and the dexed Kotlin.

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
Adds //examples/cross_compilation/android_app:run, which installs the example
APK on a connected device/emulator and launches it — booting a hermetic
emulator first if nothing is connected, so the example runs with nothing
preinstalled (no Android Studio, no device). adb comes from @AndroidSDK; the
emulator + AOSP system image are downloaded by a dev module extension
(emulator.bzl). macOS/arm64 only, to keep the delta small.

Demonstrates what zero-setup 'bazel run' support would cost for the example.

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
Explains why -lstdc++ is needed: the Android cc toolchain links libc++
statically by default, so the shared libc++_shared.so must be forced.

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
Fixes the gazelle-up-to-date CI check. Uses the correct
@rules_cc//cc:find_cc_toolchain_bzl label (gazelle's auto-generated
find_cc_toolchain doesn't exist), matching swift/toolchains/BUILD.

Claude-Session: https://claude.ai/code/session_01SmG1kqA3qB4WsLGU2xavuJ
@keith keith merged commit 9b15139 into bazelbuild:main Jul 2, 2026
15 checks passed
@AttilaTheFun AttilaTheFun deleted the android-support branch July 2, 2026 23:31
