Enhance broken/missing linked-card overlay UI (CS-11318)#5093
Merged
Conversation
Refine the placeholder + reveal overlay shown when a linksTo/linksToMany reference is missing or fails to load: - Atom placeholder is 28px tall with a 10px gap between the type label and the caution triangle. - The broken reference is informational text, never a clickable link; a copy-to-clipboard control sits to its left (the same CopyButton the AI assistant uses for code blocks). - The overlay is a fixed 350px wide, floored at 155px and capped at 600px. The cap is further clamped to the room available inside the bounding card so a tall error scrolls internally instead of clipping past the card edge. - An "Open anyway" action pinned at the overlay bottom navigates to the broken reference via the field component's viewCard (a stack visit in interact, a code-editor jump in code). viewCard is threaded to the placeholder from the linksTo and linksToMany field components. The reveal tip/beak geometry is unchanged; it anchors to the overlay corner so it tracks the resized panel. Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
![chatgpt-codex-connector[bot]](https://avatars.githubusercontent.com/in/1144995?s=60&v=4){kind=small}
There was a problem hiding this comment.
💡 Codex Review
Here are some automated review suggestions for this pull request.
Reviewed commit: de92930670
ℹ️ About Codex in GitHub
Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you
- Open a pull request for review
- Mark a draft as ready
- Comment "@codex review".
If Codex has suggestions, it will comment; otherwise it will react with 👍.
Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".
Contributor
There was a problem hiding this comment.
Pull request overview
This PR refines the broken/missing linksTo / linksToMany placeholder + reveal overlay UI, adding a non-linking URL display with copy affordance and an “Open anyway” action wired through viewCard, along with overlay sizing/scroll behavior updates and a regression test.
Changes:
- Thread
viewCardfrom links-to field components intoBrokenLinkTemplateto support an “Open anyway” navigation action. - Update
BrokenLinkTemplateoverlay UI to render the broken reference as plain text with aCopyButton, and adjust overlay sizing (fixed width + min/max height with internal scrolling). - Extend integration coverage to assert non-linking behavior, presence of copy control, and “Open anyway” behavior via
viewCard.
Reviewed changes
Copilot reviewed 5 out of 5 changed files in this pull request and generated 2 comments.
Show a summary per file
| File | Description |
|---|---|
| packages/host/tests/integration/components/linksto-broken-link-placeholder-test.gts | Adds a regression test for non-linking URL, copy affordance, and “Open anyway” navigation via viewCard. |
| packages/base/links-to-many-component.gts | Wires crud.viewCard into broken-link rendering for linksToMany placeholders. |
| packages/base/links-to-editor.gts | Wires crud.viewCard into the singular broken-link placeholder rendering. |
| packages/base/default-templates/broken-link-template.gts | Implements the updated overlay UI (copy + non-link URL) and adds “Open anyway” CTA plus overlay sizing/scroll behavior. |
| packages/base/card-api.gts | Passes cardCrudFunctions.viewCard into the BrokenLinkTemplate for singular linksTo rendering. |
💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.
Contributor
Preview deploymentsHost Test Results 1 files 1 suites 1h 54m 7s ⏱️ Results for commit 2584ee2. Realm Server Test Results 1 files 1 suites 10m 34s ⏱️ Results for commit 2584ee2. For more details on these errors, see this check. |
Address review feedback on the broken-link overlay: - "Open anyway" now only offers to navigate http(s) references. The CTA forwards the reference into viewCard, so non-http protocols (javascript:, data:, …) are rejected — the same safety posture the plain-text URL display already keeps. Adds a parseHttpUrl helper shared by canOpen and openAnyway. - The room-based height clamp no longer collapses the overlay to 0px when a card is too short to fit it (trigger pinned near both edges). It floors at a usable height so the panel stays reachable, overflowing rather than vanishing — the accepted fallback for very small cards. Adds a regression test that "Open anyway" is withheld for a non-http(s) reference. Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
backspace
approved these changes
Jun 4, 2026
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Refines the placeholder and reveal overlay shown when a
linksTo/linksToManyreference is missing or fails to load (CS-11318).What changed
CopyButtonthe AI assistant uses for code blocks.viewCard— a stack visit in interact mode, a code-editor jump in code mode.viewCardis threaded down to the placeholder from thelinksToandlinksToManyfield components. The reveal tip/beak geometry is unchanged; it anchors to the overlay corner via CSSanchor(), so it tracks the resized panel and re-orients to whichever corner faces the placeholder.Overlay states

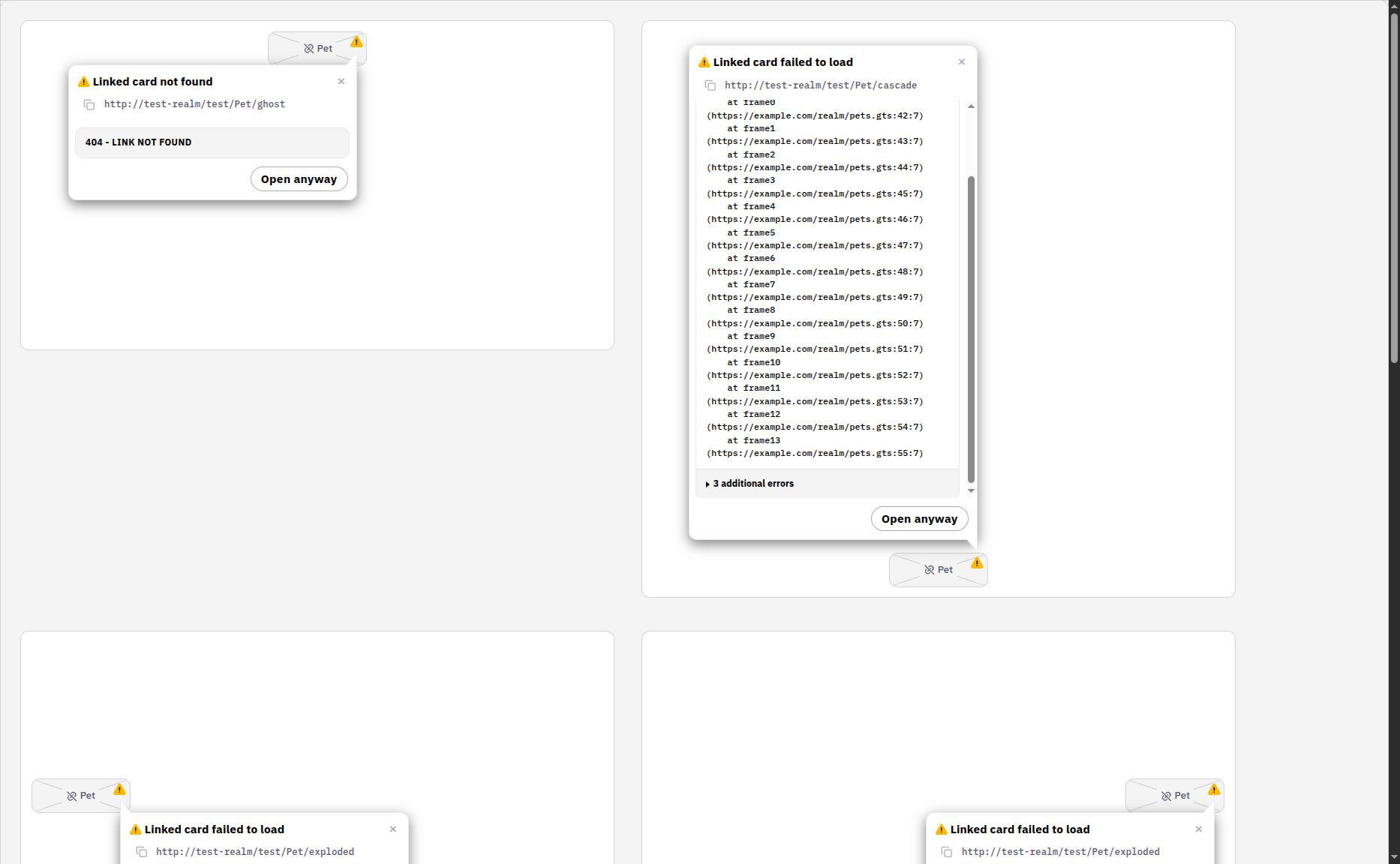

Not-found (155px floor) and a failed-to-load error capped at 600px with an internal scrollbar; both show the copyable URL and the tip pointing back at the placeholder:

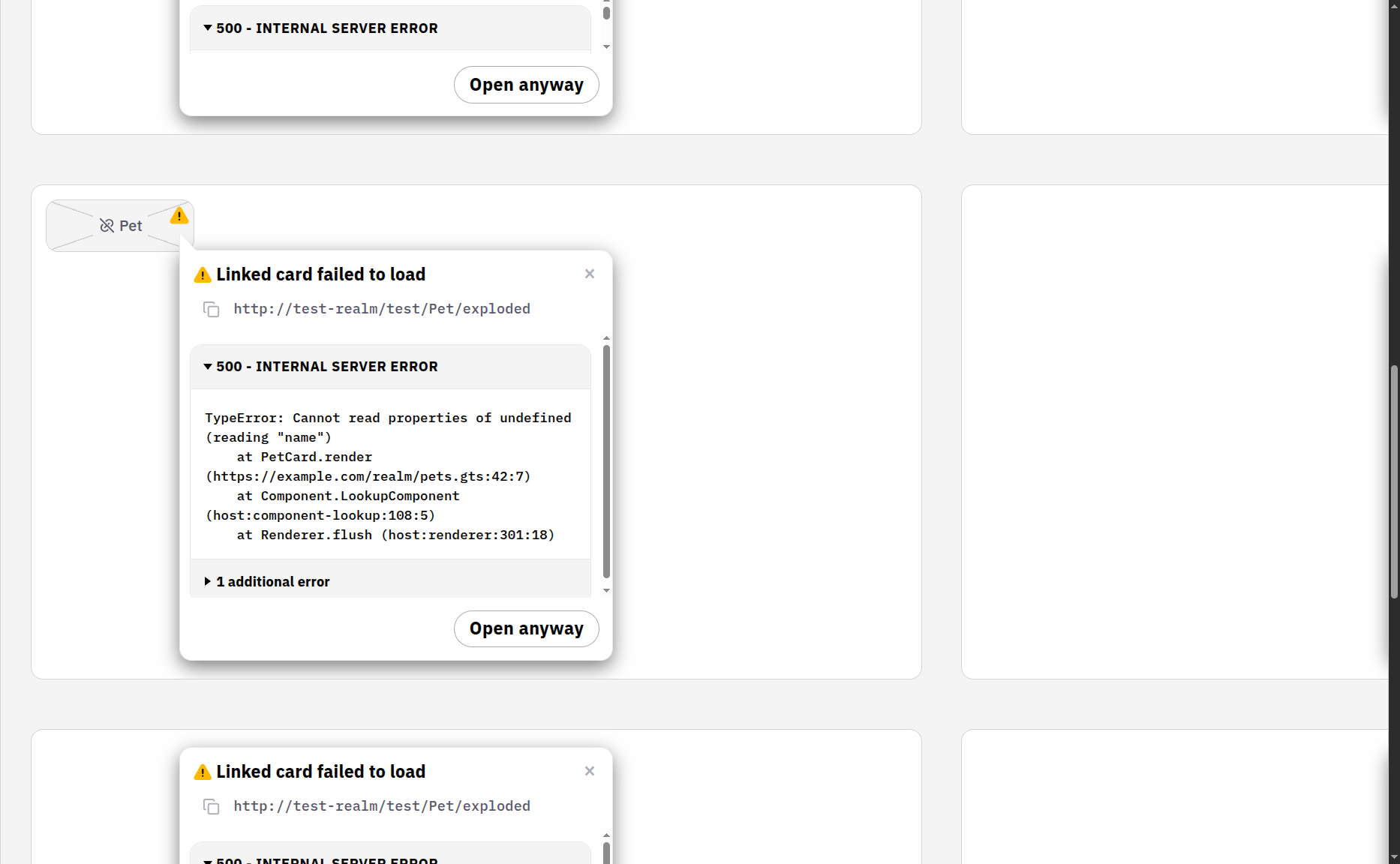

Error overlay detail — status, stack, additional-errors accordion, and the pinned "Open anyway":

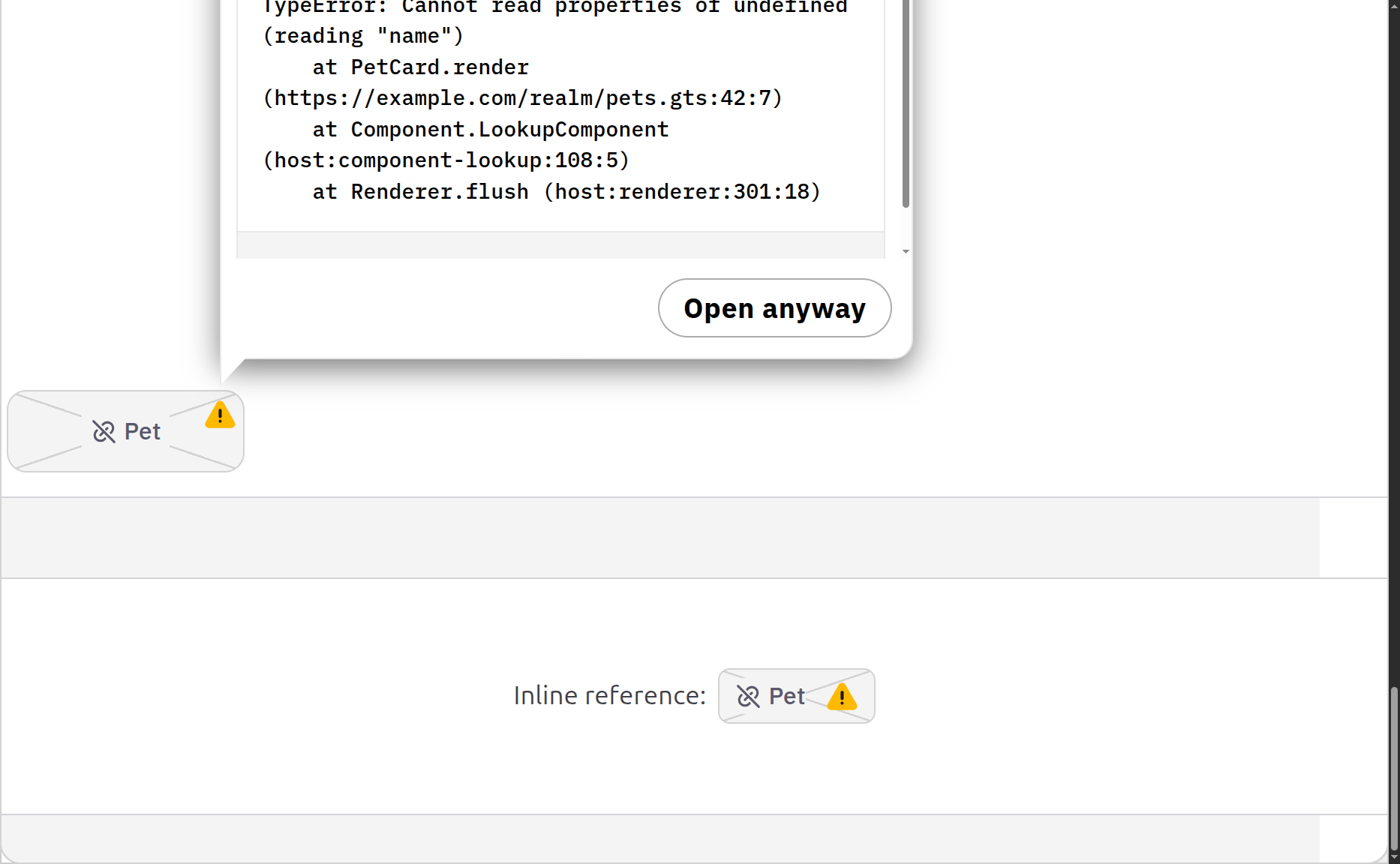

Atom placeholder (28px, 10px gap):
Tests
Extends
linksto-broken-link-placeholder-testwith a regression test asserting the reference is not an anchor, the copy affordance is present, and "Open anyway" navigates viaviewCard. Full broken-link placeholder suite (singular + plural, 20 tests / 84 assertions) passes.🤖 Generated with Claude Code
