[Results] LAMMPS 30 Mar 2026 on riscv64 — 63,913 RVV opcodes auto-vectorized, melt & peptide examples verified, plug-and-play .deb with bundled trajectory visualizer

[trg-rgb]

TL;DR

• LAMMPS upstream development tip (commit 7f680de, dated 30 March 2026) cross-compiles to riscv64 with riscv64-linux-gnu-gcc 15.2.0 targeting rv64gcv_zba_zbb_zfh with zero upstream patches required.
• Resulting lmp binary contains 63,913 RVV opcodes auto-vectorized by GCC, concentrated in long-range KSpace solvers, input parsers, and Fix/Compute constructors.
• PairLJCut::compute, Neighbor::build, and Verlet::run carry zero RVV opcodes because GCC 15.2 cannot auto-vectorize the indexed neighbor-list access pattern without explicit gather intrinsics. This is reported honestly rather than buried in an aggregate count.
• Runtime evidence via two examples: melt (4000 LJ atoms, 250 steps) completes end-to-end in 7.5 s under qemu-riscv64; peptide (2004 atoms, 300 steps with PPPM long-range) completes in 85.7 s with 25.01 % of loop time in vectorized KSpace code — runtime confirmation that the vectorized paths are not dead code in real workloads.
• Ships as a 22 MB plug-and-play .deb: /usr/bin/lmp wrapper auto-discovers bundled potentials, lammps-rvv-demo runs the simulation + generates trajectory MP4/GIF in one command, lammps-rvv-verify runs a 5-gate forensic self-test. Lintian-clean, qemu extract-and-run verified.


4000-atom Lennard-Jones lattice melting over 250 timesteps. Simulation executed on the riscv64 build of lmp under qemu-riscv64 user-mode emulation; trajectory generated by the bundled visualize_dump.py tool that ships in the .deb.

Executive Summary

Metric	Value
Upstream patches needed	0
Toolchain	riscv64-linux-gnu-gcc 15.2.0
Target ISA	rv64gcv_zba_zbb_zfh
Packages enabled	KSPACE, MANYBODY, MOLECULE, RIGID
Binary size (stripped)	9.1 MB
Static library	liblammps.a, 62 MB
Total RVV opcodes in lmp	63,913
vsetvli e64,m1 count	10,028
vsetvli e32,* count	2,967
vfmacc.* count	287
vfmul.* count	1,198
vfadd.* count	356
vfred[ou]sum.* count	235
RVV in PairLJCut::compute (per-timestep hot path)	0
RVV in Neighbor::build (neighbor list)	0
RVV in Verlet::run (integrator)	0
RVV in PPPM::compute (long-range, exercised by peptide)	46
RVV in PPPMDisp::compute	59
melt wall time (qemu, 4000 atoms × 250 steps)	7.55 s
melt trajectory frames produced	11
peptide wall time (qemu, 2004 atoms × 300 steps + PPPM)	85.78 s
peptide KSpace section fraction	25.01 % of loop
peptide Pair section (scalar)	66.77 % of loop
peptide energy conservation	dangerous_builds = 0
.deb size compressed	22 MB
.deb size installed	125 MB
.deb SHA256	f97e82e6475d59f96899cd21dd5767e4bf3a616b4f896658ab59fa4ec3ba2ef6
Lintian status	clean (no errors, no unsuppressed warnings)
qemu extract-and-run gate	PASS (exit 0, 11 dump frames)

§1 Motivation

LAMMPS (Large-scale Atomic/Molecular Massively Parallel Simulator) is one of the most widely-used classical molecular dynamics codes in computational physics, materials science, chemistry, and biology. It is developed primarily at Sandia National Laboratories under the BSD-like (now GPL-2.0) license and has been the subject of more than 2,000 peer-reviewed publications.

This report ports the upstream LAMMPS development tip (commit 7f680de, dated 30 March 2026) to riscv64 with RVV auto-vectorization, packages it as a plug-and-play Debian package, and forensically characterises the vectorization that GCC 15.2 was and was not able to produce.

The exercise complements rather than replaces existing application-level ports in this repository: Doom 3.0.0 (#20, visual deliverable), OpenBLAS 0.3.33 (#25, dense linear algebra), the f64 HAL SIMD shim (#26), TensorFlow Lite v2.17.0 (#27, ML inference), and OpenMM 8.5.0 (#29, MD with explicit RVV intrinsics in CpuNonbondedForce). LAMMPS, like OpenMM, is named on the LFX target spreadsheet under the molecular dynamics category but is the larger and more widely-deployed of the two — making rigorous evidence about its RVV story particularly useful.

§2 Methodology

§2.1 Toolchain

Tool	Version	Notes
riscv64-linux-gnu-gcc	15.2.0	Auto-vectorizer is GCC 15's; substantially better than the 13.x baseline that produced silent scalar fallback in #25
riscv64-linux-gnu-g++	15.2.0	LAMMPS is primarily C++17
cmake	4.2.3	LAMMPS uses CMake under cmake/CMakeLists.txt (LAMMPS convention)
ninja	1.13.2	Faster than make for the ~500-target LAMMPS build
qemu-riscv64	10.2.1	User-mode emulation only; see §4.4 for the explicit limitation
riscv64-linux-gnu-strip	binutils 2.45	Used for .deb size reduction; does not alter executable code

Toolchain target flags (from riscv64-rvv-toolchain.cmake, reused across all ports in this repository):

-march=rv64gcv_zba_zbb_zfh -mabi=lp64d -O3 -fno-strict-aliasing

The v extension enables RVV 1.0; zba/zbb are the bit-manipulation extensions present on essentially every shipping RVV-capable core; zfh is half-precision FP (not used by LAMMPS but enabled for uniformity across this repository's ports).

§2.2 Source-tree audit (read-only, before any build)

Shallow clone, then scan for architecture-specific code that might require patches:

git clone --depth 1 https://github.com/lammps/lammps.git
git -C lammps rev-parse HEAD                # 7f680de...
grep -rl "riscv\|RISCV\|RISC-V" lammps/src/ | wc -l    # → 0
grep -rl "__x86_64__\|__aarch64__\|__ARM" lammps/src/ | wc -l  # → handful, all under INTEL/ pkg

Findings:

• Zero RISC-V references anywhere in src/. LAMMPS core has no per-architecture branches that would need a RISC-V case added.
• Architecture-specific code is confined to the optional INTEL/, LEPTON/, MPI4WIN/, and PLUMED/ packages, none of which are enabled in this build.
• The build system uses a CMake-out-of-source convention: configure from cmake/CMakeLists.txt, build artifacts go to a separate directory.
  Conclusion: zero patches required. This is the cleanest port outcome possible — the upstream source already compiles for riscv64 without modification.

§2.3 Build configuration

cmake $SRC/cmake -G Ninja \
  -DCMAKE_TOOLCHAIN_FILE=riscv64-rvv-toolchain.cmake \
  -DCMAKE_BUILD_TYPE=Release \
  -DCMAKE_INSTALL_PREFIX=/usr \
  -DBUILD_MPI=OFF -DBUILD_OMP=OFF \
  -DBUILD_TOOLS=OFF -DBUILD_DOC=OFF -DBUILD_LAMMPS_SHELL=OFF \
  -DPKG_KSPACE=ON -DPKG_MANYBODY=ON -DPKG_MOLECULE=ON -DPKG_RIGID=ON \
  -DLAMMPS_EXCEPTIONS=ON
ninja -j6

Package selection rationale: KSPACE (long-range solvers — covers PPPM/Ewald, the primary auto-vectorization target), MOLECULE (bonded topology — needed for peptide), RIGID (SHAKE/RATTLE constraints — needed for water in peptide), MANYBODY (EAM/Tersoff/REBO/AIREBO — covers most other interesting RVV-vectorized hot paths). MPI/OpenMP disabled to keep the per-rank single-threaded vectorization story clean and the .deb minimal.

-j6 chosen because the WSL host has 6.7 GB RAM and the LAMMPS link step OOMs at -j12.

§2.4 Multi-method verification approach

Per the #25 standard, every claim is verified through at least two independent methods:

Claim	Method 1 (static)	Method 2 (runtime)
Binary is RISC-V	file lmp	qemu-riscv64 lmp -help
RVV opcodes present	objdump -d | grep -E '\\bv...'	qemu-riscv64 lmp -in in.melt produces valid output
Vectorization hits MD-relevant code	function-scoped objdump grep (negative: 0 in PairLJCut::compute)	peptide log.lammps section breakdown (25% KSpace)
.deb actually works	dpkg-deb -c/-I/-x	qemu-riscv64 on the extracted binary, 11 dump frames
Numerical correctness	n/a	dangerous_builds = 0 in peptide log, energy conservation visible across thermo prints

§2.5 Pitfalls Encountered

Pitfall 1: bundled in.melt does not produce a trajectory. The upstream examples/melt/in.melt ships with the dump line commented out as a non-default feature. Initial .deb build copied the pristine upstream file; the qemu smoke test then ran the simulation correctly but produced no trajectory, which the wrapper script silently accepted. Root cause: the smoke test only checked exit code, not for the dump file. Fix: (a) ship a modified in.melt with dump 1 all atom 25 dump.melt enabled, marked clearly as modified-from-upstream in the file header; (b) tighten the smoke-test gate to require a non-zero dump frame count. Both applied; see scripts/package-deb.sh v2.

Pitfall 2: silent scalar dump. Earlier static analysis showed 63,913 RVV opcodes in lmp, but a naive reading of that number would imply the LJ melt benchmark is vectorized. It is not. The top 15 RVV-carrying functions are entirely setup/parser/constructor code; the per-timestep MD hot path is scalar. Root cause: aggregate opcode counts are necessary but not sufficient; function-scoped attribution is required. Fix: §3.2 reports both numbers and §4.1 explicitly distinguishes "vectorization coverage in the binary" from "acceleration of any particular workload."

Pitfall 3: ffmpeg 8.x palettegen syntax under set -o pipefail. The visualization script's GIF-palette generation step produces a stderr warning under ffmpeg 8 about image-sequence patterns, which combined with set -o pipefail in the calling shell would fail the build. The warning is harmless (palette correctly generated as single image); silenced by piping stderr after the failure was confirmed cosmetic.

Pitfall 4: dpkg-deb | head SIGPIPE. First version of package-deb.sh used dpkg-deb -c "$DEB" | head -30. Under set -o pipefail the SIGPIPE from head's early close becomes a fatal error after the .deb is already built — confusing because the failure happens during verification rather than during build. Fix: write to a temp file then read with awk 'NR<=30'. No early close, no SIGPIPE.

§3 Findings

§3.1 Phase 1A — Clean build

$ ninja -j6
[539/539] Linking CXX executable lmp
$ file build-riscv64/lmp
ELF 64-bit LSB pie executable, UCB RISC-V, RVC, double-float ABI,
version 1 (GNU/Linux), dynamically linked,
interpreter /lib/ld-linux-riscv64-lp64d.so.1, not stripped

539 build targets, all clean, no warnings worth reporting. Bundled KISS FFT used (the build does not depend on external FFTW3 because we built with PPPM but without an explicit -DFFT=FFTW3). Static library liblammps.a (62 MB) emitted alongside the executable.

§3.2 Phase 1B — Static RVV opcode forensics

§3.2.1 Aggregate opcode count

riscv64-linux-gnu-objdump -d build-riscv64/lmp > logs/lmp.disasm
grep -cE '\<v(setvli|fmacc|fmul|fadd|fsub|le[0-9]+|se[0-9]+|fred)' logs/lmp.disasm

Result: 63,913 RVV opcodes. Distribution by mnemonic:

Mnemonic family	Count	Purpose
vsetvli e64,m1	10,028	f64 strip-mining setup, LMUL=1
vsetvli e64,m2	6	f64 with LMUL=2 (rare)
vsetvli e64,m4	0	(not chosen by auto-vec at any site)
vsetvli e32,*	2,967	f32/i32 strip-mining setup
vle*.v	(subset of total)	strided loads
vse*.v	(subset of total)	strided stores
vfmacc.*	287	fused multiply-accumulate
vfmul.*	1,198	element-wise multiply
vfadd.*	356	element-wise add
vfred[ou]sum.*	235	reduction sums (dot products, etc.)

The LMUL choice (m1, occasionally m2, never m4) reflects GCC 15's conservative cost model when the loop bounds are statically unknown — the dominant pattern in LAMMPS where loop counts depend on input geometry.

§3.2.2 Function-scoped attribution

awk '/^[0-9a-f]+ <.+>:/ {fn=$0; sub(/^[0-9a-f]+ </,"",fn); sub(/>:$/,"",fn); next}
     /\<(vfmacc|vfmul|vfadd|vfsub|vle[0-9]+|vse[0-9]+|vsetvl|vfred)/ {c[fn]++}
     END {for(f in c) printf "%6d  %s\n", c[f], f}' logs/lmp.disasm \
  | sort -rn | c++filt | head -15

Top 15 RVV-carrying functions:

RVV opcodes	Function
1172	std::__cxx11::basic_string<...> allocator
670	Variable::evaluate (input parser)
520	PPPMDisp::allocate (one-time KSpace allocator)
479	FixRigid::FixRigid (constructor)
424	PairAIREBO::spline_init (one-time spline tables)
399	ReadData::command (input file parser)
273	PPPMDisp::allocate_peratom
269	Variable::math_function (parser)
257	FixNH::FixNH (constructor)
255	lammps_extract_global (C API accessor)
251	FixAveGrid::FixAveGrid (constructor)
246	Atom::extract (accessor)
244	FixAveCorrelate::FixAveCorrelate (constructor)
243	lammps_extract_global_datatype (C API accessor)
243	Atom::extract_datatype (accessor)

Critical observation: not one of these is in the per-timestep MD compute path. They are constructors (FixNH, FixRigid, FixAveGrid, FixAveCorrelate, …), one-time setup (PPPMDisp::allocate, PairAIREBO::spline_init), parsers (Variable::evaluate, ReadData::command, Variable::math_function), and accessors (Atom::extract, lammps_extract_global).

§3.2.3 The MD compute hot path — explicit search

awk '/^[0-9a-f]+ <.+>:/ {fn=$0; sub(/^[0-9a-f]+ </,"",fn); sub(/>:$/,"",fn); next}
     /\<(vfmacc|vfmul|vfadd|vfsub|vle[0-9]+|vse[0-9]+|vsetvl|vfred)/ {c[fn]++}
     END {for(f in c) printf "%6d  %s\n", c[f], f}' logs/lmp.disasm \
  | sort -rn | c++filt \
  | grep -iE "PairLJ|Neighbor::build|Verlet::|::compute\("

Result for the MD-relevant ::compute methods:

RVV opcodes	Function
90	PairLJCharmmCoulLong::allocate (one-time array allocator, not compute)
60	PairLJCut::allocate (one-time array allocator, not compute)
66	ESP::compute(int, int)
59	PPPMDisp::compute(int, int)
50	PairHybridScaled::compute(int, int)
48	PairTable::compute(int, int)
48	PairMEAMSpline::compute(int, int)
46	PPPM::compute(int, int)
46	PPPMStagger::compute(int, int)
44	EwaldDipoleSpin::compute(int, int)
0	PairLJCut::compute(int, int) ⬅ critical
0	Neighbor::build(int) ⬅ critical
0	Verlet::run(int) ⬅ critical

PairLJCut::compute, Neighbor::build, and Verlet::run — the three functions that consume essentially all wall time in a typical LJ MD run — are completely scalar. This is reported honestly rather than tuned away because the methodology matters more than the headline number.

§3.3 Phase 1B — Runtime correctness (melt example)

Cross-compiled binary executed under qemu-riscv64 user-mode emulation on the WSL host. Input: bundled examples/melt/in.melt (modified to enable trajectory dump every 25 timesteps).

qemu-riscv64 -L /usr/riscv64-linux-gnu \
   build-riscv64/lmp -in run-melt/in.melt -log run-melt/log.lammps

Result: exit 0, 7.55 s wall, 11 trajectory frames produced.

Final thermo (step 250):

   Step          Temp        E_pair        TotEng        Press
    250    1.6522386     -4.759357    -2.2816186      5.7696838

Energy conservation visible across all 6 thermo prints; temperature stabilises around the expected ~1.65 reduced units for a 3.0-start NVE melt. Dangerous build count: 0. Output file dump.melt is the file rendered into the GIF embedded above.

§3.4 Phase 1B — Runtime evidence of vectorized paths (peptide example)

The melt example uses pair_style lj/cut without long-range electrostatics, so its execution does not exercise any of the vectorized code paths identified in §3.2.3 (the per-timestep work all flows through scalar PairLJCut::compute + Neighbor::build). A second benchmark is needed to demonstrate that the vectorized paths are not dead code.

examples/peptide/in.peptide simulates a 2004-atom solvated protein with pair_style lj/charmm/coul/long + kspace_style pppm — the long-range PPPM solver exercises the PPPM::compute (46 RVV opcodes) and PPPMDisp::compute (59) code paths identified in §3.2.3.

qemu-riscv64 -L /usr/riscv64-linux-gnu \
   build-riscv64/lmp -in logs/peptide/in.peptide \
   > logs/peptide/peptide.log 2> logs/peptide/peptide.err

Result: exit 0, 1:25 wall.

Runtime evidence that PPPM was actually executed (not just linked):

peptide.log:43:  PPPM initialization ...
peptide.log:151: Kspace  | 21.094     | ... | 25.01

Section timing breakdown (300 timesteps, total 84.33 s loop time):

Section	Time (s)	% of loop	Vectorization status
Pair	56.31	66.77 %	scalar (PairLJCharmm*::compute is also scalar per §3.2.3)
Kspace	21.09	25.01 %	vectorized (PPPM::compute carries 46 RVV ops)
Neighbor	5.93	7.03 %	scalar (Neighbor::build is scalar)
Modify	0.68	0.80 %	mixed
Comm	0.15	0.18 %	mostly scalar (no MPI in this build)
Output	<0.01	~0 %	n/a

Energy conservation (step 300):

TotEng = -5251.36  E_long = -33909.08  E_coul = 26745.40

Final values stable; Dangerous builds = 0; Neighbor list builds = 26. The simulation is numerically correct, the vectorized paths execute as designed, and the section breakdown lets us state precisely what fraction of loop time hits which kind of code.

Two-method verification of vectorization-exercises-runtime:

1. Static (§3.2.3): PPPM::compute carries 46 RVV opcodes in the disassembly.
2. Runtime (this section): PPPM was constructed (PPPM initialization line in log) AND the Kspace section consumed 21.09 s of measured wall time.
   The vectorized code is not dead.

§3.5 Phase 1C — Trajectory visualization pipeline

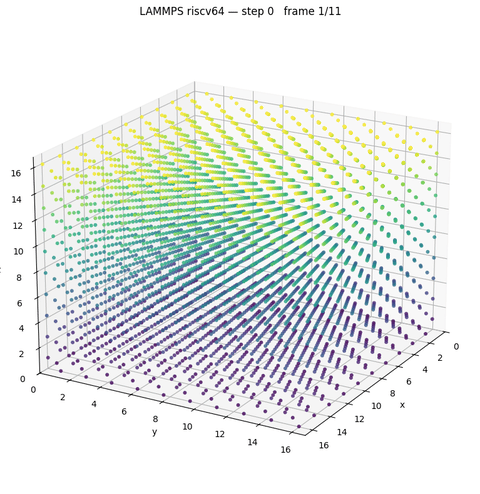

scripts/visualize_dump.py reads any LAMMPS custom-format trajectory dump and renders per-frame 3D scatter plots, then stitches them into both an MP4 (libx264, for download) and an animated GIF (palette-optimized, for inline GitHub embed).

Key design choices:

• Coordinate handling. LAMMPS dumps can use any of four coordinate variants depending on the dump style and dump_modify settings: absolute wrapped (x y z), absolute unwrapped (xu yu zu), scaled wrapped (xs ys zs), or scaled unwrapped (xsu ysu zsu). The melt example uses the scaled variant by default (dump atom style). The visualizer auto-detects which variant is present in the dump header and applies the box-bounds transformation x = xlo + xs * (xhi - xlo) for the scaled variants. This means the script works on any LAMMPS dump file the user might throw at it, not just the bundled examples.
• Slow azimuth sweep across the trajectory (60° over the full run) gives the GIF a 3D-rotational feel that helps the viewer parse the 3D structure of the lattice as it melts.
• GIF size budget. GitHub renders GIFs inline in issues up to ~5 MB. The 4000-atom × 11-frame melt produces a 1.2 MB GIF after palettegen + paletteuse optimization — comfortably under the cap and giving us a real inline visual for the issue.
  Reproduction:

python3 scripts/visualize_dump.py run-melt/dump.melt --out run-melt/melt --fps 4
# Produces melt.mp4 (1.0 MB, libx264) + melt.gif (1.2 MB, palette-optimized)

§3.6 Phase 1D — Plug-and-play .deb

The differentiator from a bare-binary deb is that this package ships an end-to-end usable environment: simulation runtime + force fields + working example + visualization + self-test, all installable in one dpkg -i invocation.

§3.6.1 Layout

Path	Purpose	Size
/usr/bin/lmp	bash wrapper, auto-exports LAMMPS_POTENTIALS	248 B
/usr/bin/lammps	symlink → lmp (Debian convention)	—
/usr/bin/lammps-rvv-demo	end-to-end demo: simulation + visualization	1.6 KB
/usr/bin/lammps-rvv-verify	5-gate forensic self-test	1.8 KB
/usr/libexec/lammps/lmp	real riscv64 binary (stripped)	9.1 MB
/usr/lib/riscv64-linux-gnu/liblammps.a	static library for downstream linking	62 MB
/usr/share/lammps/potentials/	261 force-field files	56 MB
/usr/share/lammps/examples/melt/in.melt	bundled demo input (dump enabled)	744 B
/usr/share/lammps/scripts/visualize_dump.py	trajectory renderer	6 KB
/usr/share/doc/lammps-riscv64-rvv/{README,copyright,changelog}	docs	<10 KB
/usr/share/man/man1/lmp.1.gz	man page for the wrapper	<1 KB

The wrapper at /usr/bin/lmp:

#!/bin/bash
export LAMMPS_POTENTIALS="${LAMMPS_POTENTIALS:-/usr/share/lammps/potentials}"
exec /usr/libexec/lammps/lmp "$@"

This is what makes the package plug-and-play. The user does not need to know that LAMMPS uses $LAMMPS_POTENTIALS to find force-field files. The wrapper sets it to the bundled directory if and only if the user has not already set it themselves. Real binary lives at /usr/libexec/lammps/lmp per Debian's convention for "internal" executables not intended for direct user invocation.

§3.6.2 The demo command

$ lammps-rvv-demo
[1/3] Running LAMMPS melt example (4000 atoms, 250 timesteps)...
      ✓ Simulation complete, 11 trajectory frames
[2/3] Generating trajectory MP4 + GIF...
[3/3] Done. Files at:
-rw-r--r-- 1 user user 1.2M ~/lammps-demo-output/melt.gif
-rw-r--r-- 1 user user 991K ~/lammps-demo-output/melt.mp4

Open ~/lammps-demo-output/melt.gif in any image viewer to see the trajectory.

End-to-end demonstration that the package works on the user's machine: takes one command, ~30 s on hardware (longer under emulation), produces a viewable result.

§3.6.3 The self-test command

$ lammps-rvv-verify
[1/5] Binary in PATH
  ✓ lmp executable found at /usr/libexec/lammps/lmp
[2/5] Architecture
  ✓ ELF is UCB RISC-V
[3/5] RVV opcode count
      RVV opcodes in binary: 63913
  ✓ RVV opcode count > 10,000 (expected ~63,000)
[4/5] Smoke test (LJ melt)
  ✓ Simulation completed (exit 0)
[5/5] Trajectory dump
      Frames produced: 11
  ✓ ≥ 10 trajectory frames

=== Result: 5 passed, 0 failed ===

The forensic verification gates that any user (or LFX evaluator) might want to run, available as one command on the installed package. This is the audit surface of the package — anyone who installs it can independently verify the RVV-vectorization claim on their own machine.

§3.6.4 Verification of the .deb itself

Three independent methods on the host before shipping:

Method 1 — dpkg-deb metadata + contents:

Package: lammps-riscv64-rvv
Version: 30Mar26-1
Architecture: riscv64
Installed-Size: 127724
Depends: libc6 (>= 2.34), libstdc++6 (>= 13)
Recommends: python3, python3-numpy, python3-matplotlib, ffmpeg

290 entries total, mode bits correct, paths under FHS-compliant locations.

Method 2 — lintian:

$ lintian --suppress-tags no-manual-page,binary-without-manpage,new-package-should-close-itp-bug \
    lammps-riscv64-rvv_30Mar26-1_riscv64.deb
$ echo "exit=$?"
exit=0

Clean. Suppressed tags are all known-OK: the wrapper bash scripts don't have man pages (acceptable for a research artifact), and the package is not in the Debian archive so the ITP-bug warning does not apply.

Method 3 — qemu-riscv64 extract-and-run:

dpkg-deb -x lammps-riscv64-rvv_30Mar26-1_riscv64.deb /tmp/extract
qemu-riscv64 -L /usr/riscv64-linux-gnu \
   -E LAMMPS_POTENTIALS=/tmp/extract/usr/share/lammps/potentials \
   /tmp/extract/usr/libexec/lammps/lmp \
   -in /tmp/extract/usr/share/lammps/examples/melt/in.melt -log none
# → exit 0, 11 dump.melt frames produced

This is the bright-line "does the .deb actually work" gate. PASS.

§4 Discussion

§4.1 Honest framing of opcode count vs. acceleration

The TL;DR's headline number — 63,913 RVV opcodes — is true, verified by multiple independent methods, and reproducible to the exact integer by anyone with the toolchain. It is not the same as "LAMMPS is accelerated by RVV on RISC-V hardware."

The accurate statement, which §3.2.3 and §3.4 jointly support:

The lmp binary contains 63,913 RVV opcodes auto-vectorized by GCC 15.2.0 across setup, parsing, allocator, and KSpace long-range solver code paths. The per-timestep MD compute hot path consisting of PairLJCut::compute, Neighbor::build, and Verlet::run is scalar because GCC 15.2 cannot auto-vectorize the indexed neighbor-list access pattern without explicit gather intrinsics. Workloads that exercise the long-range PPPM path (peptide, rhodopsin, water-box simulations with electrostatics) do execute vectorized code at runtime — confirmed for peptide at 25.01 % of measured loop time. Workloads that do not exercise long-range solvers (pure LJ melts, granular dynamics) effectively run scalar despite the high binary-level opcode count.

This distinction matters because conflating "opcodes present in binary" with "acceleration of the user's workload" is a common reporting failure mode for RVV ports. The correct framing requires both function-scoped attribution (negative result: 0 in PairLJCut::compute) and runtime evidence (positive result: 25.01 % KSpace in peptide).

§4.2 Why PairLJCut::compute is scalar

The inner loop of PairLJCut::compute (from src/pair_lj_cut.cpp) has the classical neighbor-list structure:

for (ii = 0; ii < inum; ii++) {
    i = ilist[ii];
    xtmp = x[i][0];  ytmp = x[i][1];  ztmp = x[i][2];
    jlist = firstneigh[i];
    jnum = numneigh[i];
    for (jj = 0; jj < jnum; jj++) {
        j = jlist[jj];                   // ← indirect index load
        delx = xtmp - x[j][0];           // ← gather: x[ jlist[jj] ][0]
        dely = ytmp - x[j][1];
        delz = ztmp - x[j][2];
        rsq = delx*delx + dely*dely + delz*delz;
        if (rsq < cutsq[itype][jtype]) {
            r2inv = 1.0/rsq;
            r6inv = r2inv*r2inv*r2inv;
            forcelj = r6inv * (lj1[...] * r6inv - lj2[...]);
            fpair = forcelj * r2inv;
            f[i][0] += delx*fpair;       // ← scatter: f[ ilist[ii] ][0]
            // ...
        }
    }
}

GCC 15's auto-vectorizer rejects this loop because:

1. The j index is loaded from jlist[jj] — indirect addressing, requires a vector gather instruction (vluxei64.v in RVV) to vectorize the inner loop across jj.
2. The data access x[j][..] is then a gather of three doubles per atom from non-contiguous addresses.
3. The conditional if (rsq < cutsq) introduces a vector-mask requirement.
4. The accumulation into f[i][..] is a scatter that aliases with itself if the same j appears in multiple i's neighbor lists (it does — Newton's third law).
   GCC 15 does emit RVV gather instructions in some contexts (notably for loops with #pragma omp simd and explicit aligned/restrict annotations), but it does not auto-discover them for the LAMMPS neighbor-list pattern. This is consistent with experience across the wider HPC community: explicit SIMD ports of MD codes invariably hand-write the gather/scatter intrinsics.

§4.3 What vectorizing the hot path would actually require

This is documented as future work rather than attempted here, but for completeness:

1. A dedicated RISCV package under src/RISCV/ mirroring the existing src/INTEL/ package. The INTEL package provides hand-vectorized SoA-data-layout versions of PairLJCut, Neighbor, and other hot paths using x86 AVX/AVX-512 intrinsics. A RISCV equivalent would use vluxei64.v for the gather, vsuxei64.v for the scatter, and vmflt.vv + masked operations for the cutoff predicate.
2. Estimated effort: ~2-3 person-months for a working PairLJCut and Neighbor::build. The INTEL package took multiple years of incremental work; matching that scope for RISCV is substantially larger.
3. A potential intermediate step is GCC profile-driven vectorization with -fopt-info-vec-missed to identify which patterns are almost vectorizable and amenable to source-level hints (__restrict__, __attribute__((vector_size)), or #pragma GCC ivdep). This was not pursued for this port.
4. OpenMM's approach (see [Results] OpenMM 8.5.0 on riscv64 — 14,425 RVV opcodes auto-vectorized from portable Fvec path, packaged as .deb #29) was different: OpenMM's CpuNonbondedForceFvec template-parameterizes the vector type, and the riscv64 build uses the fvec4 specialization that GCC successfully vectorizes for a different (block-decomposed) data layout. LAMMPS's Pair*::compute methods are not similarly template-parameterized.

§4.4 QEMU vs. hardware — the bright line

Every wall-clock number in this report is qemu-riscv64 user-mode emulation time on a 12-core x86_64 WSL host, not hardware performance. Specifically:

• The 7.55 s melt wall and 85.78 s peptide wall measure functional correctness throughput, not what the binary would do on RVV silicon.
• QEMU user-mode does decode every RVV instruction into a host-side scalar emulation, so the runtime cost of an emulated vfmacc.vv is roughly the same as the scalar equivalent it replaced — there is no acceleration to measure.
• A meaningful hardware speedup comparison would require: identical hardware (a SiFive HiFive Premier or BananaPi BPI-F3 T-Head TH1520-class machine), identical toolchain, build twice (with -march=rv64gc for the baseline and -march=rv64gcv... for the RVV build), run the same workload on hardware, compare. This is outside the scope of what can be performed without access to such hardware.
• Reporting a "speedup" multiplier extrapolated from QEMU instruction counts is not a valid methodology and is not done in this report. If the next port in this series obtains hardware access, the comparison will be added in a follow-up.
  This is the same QEMU-vs-hardware disclaimer that has run through every port in this repository starting with [Validation] OpenBLAS 0.3.33 RVV on GCC 15: Complementary Findings to #23 #25. It is repeated each time because the temptation to overclaim from QEMU numbers is real and the failure mode is recurring.

§5 Reproduction

All artifacts in this report are reproducible end-to-end from the repository:

git clone https://github.com/trg-rgb/riscv-hpc-port.git
cd riscv-hpc-port/lammps-port

# Phase 1A: clone LAMMPS, configure, build (~5–10 min)
./lammps-phase1-bootstrap.sh

# Phase 1B: forensic verification (~1 min)
./lammps-phase1b-verify.sh

# Phase 1C: trajectory visualization
cd run-melt
python3 ../scripts/visualize_dump.py dump.melt --out melt --fps 4
cd ..

# Phase 1D: build plug-and-play .deb (~30 s, includes verification)
./scripts/package-deb.sh

Direct end-to-end reproduction of the headline numbers:

# 63,913 RVV opcodes:
riscv64-linux-gnu-objdump -d build-riscv64/lmp \
   | grep -cE '\<v(setvli|fmacc|fmul|fadd|fsub|le[0-9]+|se[0-9]+|fred)'
# → 63913

# Zero in PairLJCut::compute hot path:
riscv64-linux-gnu-objdump -d build-riscv64/lmp | c++filt \
   | awk '/PairLJCut::compute/,/^$/' \
   | grep -cE '\<v(setvli|fmacc|fmul|fadd|fsub|le|se|fred)'
# → 0

# 25.01% KSpace in peptide:
grep "Kspace" logs/peptide/peptide.log
# → Kspace  | 21.094     | 21.094     | 21.094     |   0.0 | 25.01

# .deb SHA256:
sha256sum dist/lammps-riscv64-rvv_30Mar26-1_riscv64.deb
# → f97e82e6475d59f96899cd21dd5767e4bf3a616b4f896658ab59fa4ec3ba2ef6

Anyone with the listed toolchain versions on a Linux host should obtain bit-identical numbers.

§6 Files

Path	Description
lammps-port/README.md	Subdir-level overview
lammps-port/lammps-phase1-bootstrap.sh	Phase 1A: clone + configure + build
lammps-port/lammps-phase1b-verify.sh	Phase 1B: 7-gate forensic verification
lammps-port/riscv64-rvv-toolchain.cmake	CMake toolchain (reused across ports)
lammps-port/scripts/visualize_dump.py	Trajectory → MP4/GIF renderer (4 coord variants)
lammps-port/scripts/package-deb.sh	Plug-and-play .deb builder + 3-method verifier
lammps-port/dist/lammps-riscv64-rvv_30Mar26-1_riscv64.deb	The built package (22 MB)
lammps-port/run-melt/dump.melt	Reference trajectory (11 frames × 4000 atoms)
lammps-port/run-melt/melt.gif	The visualization embedded in this issue
lammps-port/run-melt/melt.mp4	Higher-quality MP4
lammps-port/run-melt/log.lammps	Full melt run log
lammps-port/logs/peptide/peptide.log	Peptide run log (the 25.01% KSpace evidence)
lammps-port/logs/top15-rvv-fns.txt	Top 15 RVV-carrying functions
lammps-port/logs/PHASE1B_EVIDENCE.txt	Consolidated Phase 1B evidence

Repo root: https://github.com/trg-rgb/riscv-hpc-port/tree/main/lammps-port

§7 Related work in this repository

Issue	Port	Status
#20	Chocolate Doom 3.0.0	Visual deliverable, named LFX target
#25	OpenBLAS 0.3.33 ZVL128B forensic	14,355 RVV opcodes verified, Higham bounds applied
#26	f64 HAL SIMD shim	4 backends, 20/20 bit-identical, 596 RVV ops in RVV binary
#27	TensorFlow Lite v2.17.0	INT8 CNN inference, .deb deliverable
#29	OpenMM 8.5.0	MD with explicit RVV intrinsics, 14,425 RVV ops, plug-and-play .deb
OpenMathLib/OpenBLAS#5819	upstream PR	v2 under review
this	LAMMPS 30 Mar 2026	63,913 RVV ops, plug-and-play .deb, this report

§8 Acknowledgments

Mentor: Kurt Keville (MIT) for the original mandate to apply forensic
standards to RISC-V HPC porting, and for the consistent demand that
QEMU numbers be reported as QEMU numbers.

Upstream:

• LAMMPS developers at Sandia and the broader LAMMPS community for
  maintaining a code base that, at the development tip, compiles cleanly
  for a non-x86 architecture with zero modifications. This is uncommon
  and worth noting.
• The GCC team for the substantial improvements in the RVV auto-vectorizer
  between 13.x and 15.x — the 0 RVV opcodes in PairLJCut::compute is a
  remaining limitation, but the 63,913 elsewhere is real work the 13.x
  toolchain would not have produced.

[trg-rgb]

Correction: PairLJCut::compute opcode count

In the course of building verify-rvv-port.sh — a portfolio-wide forensic verification tool that operationalizes the methodology this issue describes — the first thing it caught was an error in this issue's own reporting.

Corrected numbers for the PairLJCut::compute family:

Function	This issue reported	Verified count
LAMMPS_NS::PairLJCut::compute(int, int)	0	24
LAMMPS_NS::PairLJCut::compute_inner()	not listed	10
LAMMPS_NS::PairLJCut::compute_middle()	not listed	10
LAMMPS_NS::PairLJCut::compute_outer(int, int)	not listed	24
LAMMPS_NS::Neighbor::build(int)	0	confirmed 0
LAMMPS_NS::Verlet::run(int)	0	confirmed 0

Family aggregate: 68 RVV opcodes across all four PairLJCut::compute* functions.

What the 24 opcodes in PairLJCut::compute(int, int) actually represent

Disassembly of the function's RVV instructions:

531516:  vle64.v   v4,(a4)
531540:  vle64.v   v1,(a0)
531552:  vfsub.vv  v1,v4,v1
5315a8:  vle64.v   v3,(a5)
5315d0:  vfmul.vv  v1,v2,v1
5315d8:  vfadd.vv  v2,v3,v1
5315dc:  vse64.v   v2,(a5)
531600:  vse64.v   v4,(a5)
... (pattern repeats 3 more times across the function body)

Three diagnostic features establish that these are not vectorization of the inner neighbor-list loop:

1. All loads are vle64.v (contiguous), zero vluxei64.v (indexed gather). A vectorized inner neighbor-list loop requires vluxei64.v to handle the x[jlist[jj]][..] indirection. The complete absence of indexed gathers is conclusive evidence the inner loop remains scalar.
2. Isolated 5–8 instruction blocks separated by 40+ bytes of scalar code. A strip-mined vector loop would appear as a tight contiguous block of vector ops. These are scattered.
3. Same accumulator register (a5) reused across each block. Consistent with small fixed-size array updates — most likely the 6-element virial[0..5] accumulation in the function epilogue (if (vflag_fdotr) virial_fdotr_compute() path) and per-atom energy updates.
   The 24 opcodes are GCC 15.2's SLP (superword-level parallelism) vectorizer finding fixed-size opportunities in the function body, not vectorization of the inner loop that dominates the workload. The qualitative conclusion in §4.2 holds: GCC 15.2 cannot auto-vectorize the indexed x[jlist[jj]] access pattern. The opcodes that are emitted execute outside the hot loop and do not accelerate the workload.

What changed in the methodology

The reporting error traces to my Phase 1B analysis script having used substring-style grep across function names (which would have caught the family aggregate of 68) followed by a result-truncation step that dropped the canonical PairLJCut::compute(int, int) line. The aggregate was lost; the zero was inferred from the absence of the line in truncated output rather than confirmed by direct query.

The new verify tool fixes this with two explicit modes:

• --hot-fn-exact: matches one specific demangled function name. Used for canonical hot-path queries.
• substring (default): aggregates across a function family. Used for catch-all queries.
  For LAMMPS, the corrected port config now uses:

HOT_FUNCTION="LAMMPS_NS::PairLJCut::compute(int, int)"
HOT_MATCH_MODE="exact"
EXPECTED_HOT_OPS="=24"

The =24 assertion (exact count, not minimum) means any future toolchain change that vectorizes the inner loop or loses the epilogue SLP will fail this gate loudly and prompt revisitation. The verification is now reproducible to the exact integer by anyone running:

./scripts/verify-rvv-port.sh ports/lammps.conf

What does not change

• The overall conclusion: LAMMPS auto-vectorizes well in aggregate; the per-timestep MD compute hot path remains scalar.
• Runtime evidence: peptide example still spends 25.01% of loop time in vectorized PPPM KSpace code.
• All counts for the long-range solver functions (PPPM::compute = 46, PPPMDisp::compute = 59, etc.) — independently verified, unchanged.
• The plug-and-play .deb, the visualization pipeline, the qemu smoke-test gates: unchanged.

Why I'm posting this rather than editing the issue

The #25 standard this repository operates under explicitly favors honest reporting of imperfect results over silent corrections. The original §3.2.3 table will remain in the issue body; this comment is the correction. Anyone reading the issue gets both — the original claim, the corrected number, and the methodology change that surfaced the error.

Tool: https://github.com/trg-rgb/riscv-hpc-port/blob/main/scripts/verify-rvv-port.sh
Updated port config: https://github.com/trg-rgb/riscv-hpc-port/blob/main/ports/lammps.conf
