Examples

Run the demo app:

cd example
flutter run

The examples now focus on motion. BottomBarMotion() defaults to Motor-backed Cupertino spring motion, so quick scroll direction changes redirect naturally instead of restarting a fixed curve.

Polished Demos

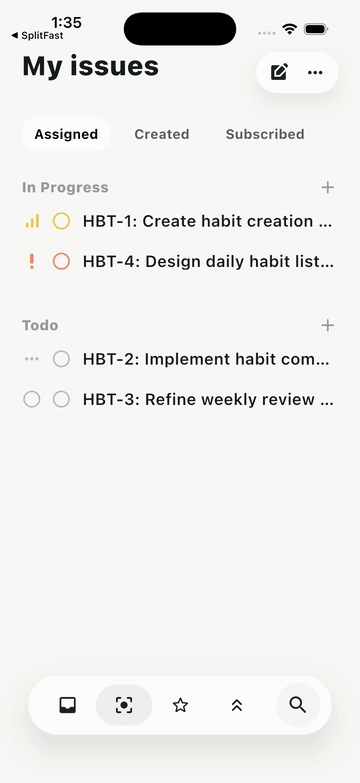

Issues dock — example/lib/demos/tab_bar_demo.dart

Reference-inspired issue list with a floating icon dock and search puck. Scroll quickly up/down to see the Cupertino spring redirect mid-flight.

Issues dock

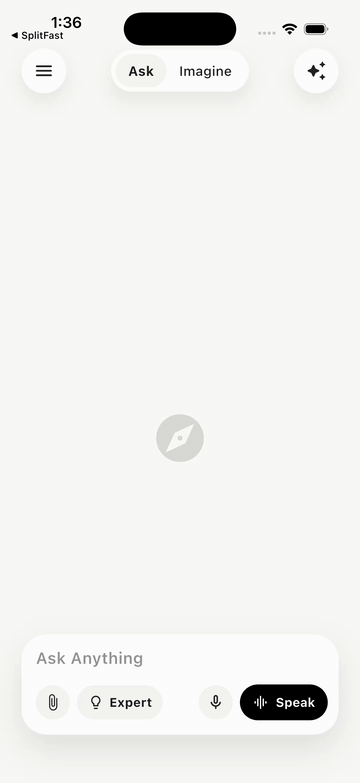

AI prompt dock — example/lib/demos/search_bar_demo.dart

Large prompt composer with pill actions, a speak button, and interactive Cupertino motion.

AI prompt dock

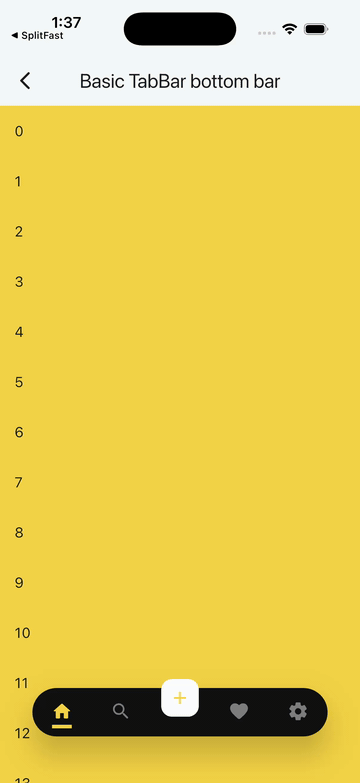

Basic TabBar — example/lib/demos/basic_tab_bar_demo.dart

Direct five-tab bottom bar with a floating center action, colored pages, hide-on-scroll, and the default Cupertino-style spring.

Basic TabBar

Minimal API — example/lib/demos/basic_demo.dart

Compact example showing the default spring behavior with the smallest useful BottomBar setup.

Minimal API

Supporting Recipes

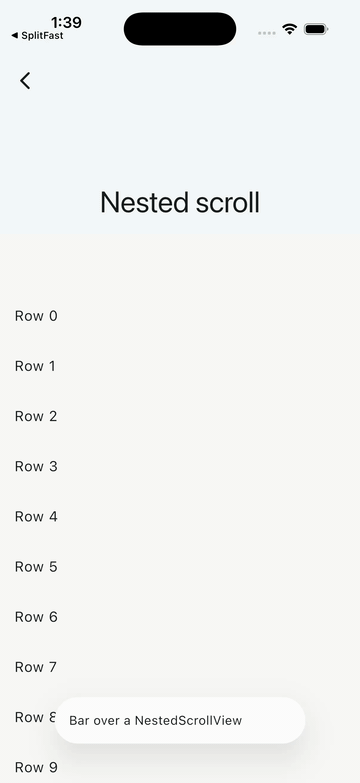

Nested scroll — example/lib/demos/nested_scroll_demo.dart

NestedScrollView support with smooth spring show/hide.

Nested scroll

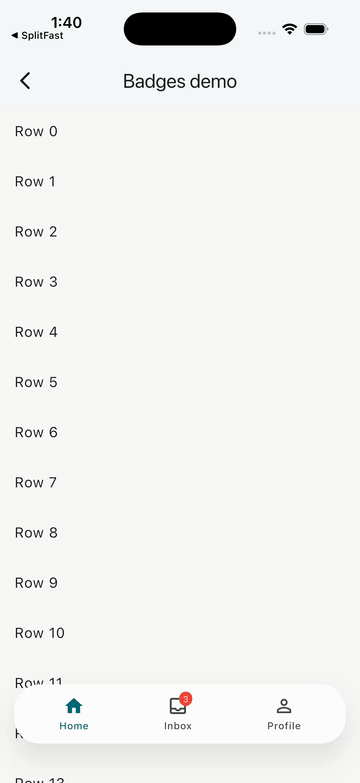

Badged nav — example/lib/demos/badges_demo.dart

BottomBarItems and BottomBarItem with bouncy Cupertino motion.

Badged nav

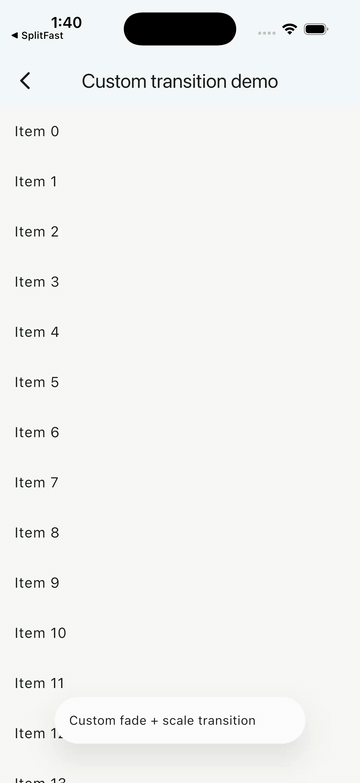

Custom transition — example/lib/demos/custom_transition_demo.dart

Deterministic BottomBarMotion.curved(...) plus a custom fade/scale builder. Clamp opacity and size in custom builders because spring progress can overshoot.

Custom transition

Motion Snippets

// Default Cupertino spring.
const BottomBarMotion()
// A more expressive spring.
const BottomBarMotion.cupertino(
  preset: BottomBarCupertinoMotion.bouncy,
  extraBounce: 0.04,
)
// Traditional fixed-time motion for deterministic tests/goldens.
const BottomBarMotion.curved(
  duration: Duration(milliseconds: 280),
  curve: Curves.easeOutCubic,
)
// Raw Motor motion.
const BottomBarMotion.motor(
  Motion.snappySpring(),
)

Recording your own gifs

The repo ships a small recording helper for the iOS Simulator at tool/record_gif.sh.

  1. Boot the iOS Simulator and run the demo app:
    make run-ios
  2. Pick a demo from the list and navigate to it.
  3. In a second terminal, start recording with the slug for that demo:
    make record NAME=1-issues-dock
  4. Interact with the simulator (scroll, tap, etc.). Press Ctrl+C in the recording terminal to stop and finalize.
  5. The gif is written to screenshots/<NAME>.gif.

Use these slugs so they line up with the README grid:

# Demo Slug
1 Issues dock 1-issues-dock
2 AI prompt dock 2-ai-prompt-dock
3 Basic TabBar 3-basic-tab-bar
4 Minimal API 4-minimal-api
5 Nested scroll 5-nested-scroll
6 Badged nav 6-badged-nav
7 Custom transition 7-custom-transition

Tunables (env vars): GIF_FPS (default 24), GIF_WIDTH (default 360).
