title DuckDB
description Set up Cube with DuckDB for cloud object storage, local database files, or MotherDuck-backed hybrid query execution.

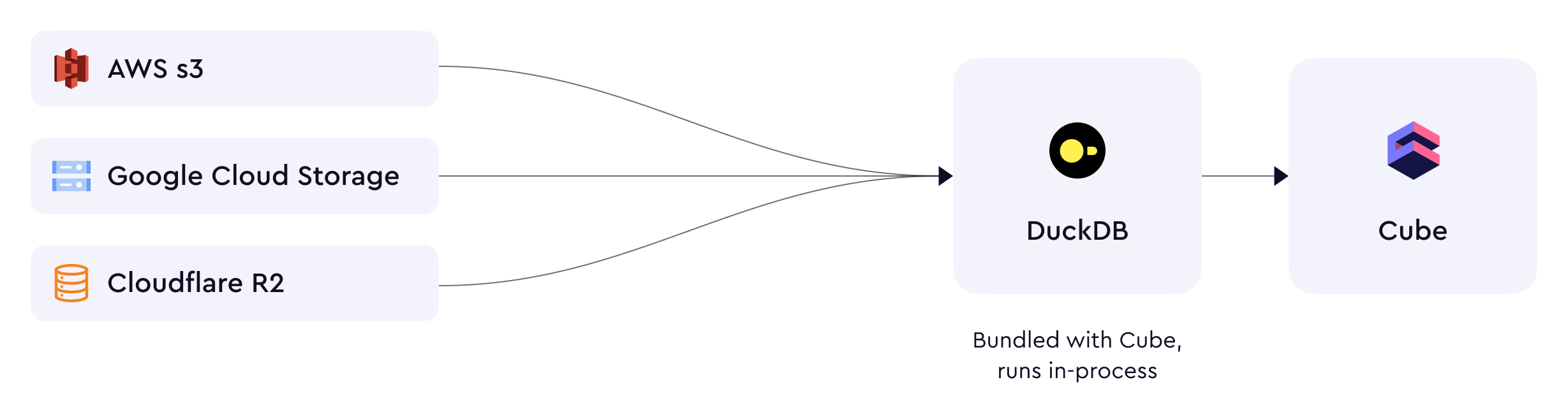

DuckDB is an in-process SQL OLAP database management system, and has support for querying data in CSV, JSON and Parquet formats from an AWS S3-compatible blob storage. This means you can query data stored in AWS S3, Google Cloud Storage, or Cloudflare R2. You can also use the CUBEJS_DB_DUCKDB_DATABASE_PATH environment variable to connect to a local DuckDB database.

Cube can also connect to MotherDuck, a cloud-based serverless analytics platform built on DuckDB. When connected to MotherDuck, DuckDB uses hybrid execution and routes queries to S3 through MotherDuck for better performance.

Prerequisites

  • A set of IAM credentials which allow access to the S3-compatible data source. Credentials are only required for private S3 buckets.
  • The region of the bucket
  • The name of a bucket to query data from

Setup

Manual

Add the following to a .env file in your Cube project:

CUBEJS_DB_TYPE=duckdb

Cube Cloud

In Cube Cloud, select DuckDB when creating a new deployment and fill in the required fields:

Cube Cloud DuckDB Configuration Screen

If you are not using MotherDuck, leave the MotherDuck Token field blank.

You can also explore how DuckDB works with Cube if you create a demo deployment in Cube Cloud.

Environment Variables

Environment Variable Description Possible Values Required
CUBEJS_DB_DUCKDB_MEMORY_LIMIT The maximum memory limit for DuckDB. Equivalent to SET memory_limit=<MEMORY_LIMIT>. Default is 75% of available RAM A valid memory limit ❌
CUBEJS_DB_DUCKDB_SCHEMA The default search schema A valid schema name ❌
CUBEJS_DB_DUCKDB_MOTHERDUCK_TOKEN The service token to use for connections to MotherDuck A valid MotherDuck service token ❌
CUBEJS_DB_DUCKDB_DATABASE_PATH The database filepath to use for connection to a local database. A valid duckdb database file path ❌
CUBEJS_DB_DUCKDB_S3_ACCESS_KEY_ID The Access Key ID to use for database connections A valid Access Key ID ❌
CUBEJS_DB_DUCKDB_S3_SECRET_ACCESS_KEY The Secret Access Key to use for database connections A valid Secret Access Key ❌
CUBEJS_DB_DUCKDB_S3_ENDPOINT The S3 endpoint A valid S3 endpoint ❌
CUBEJS_DB_DUCKDB_S3_REGION The region of the bucket A valid AWS region ❌
CUBEJS_DB_DUCKDB_S3_USE_SSL Use SSL for connection A boolean ❌
CUBEJS_DB_DUCKDB_S3_URL_STYLE To choose the S3 URL style(vhost or path) vhost or path ❌
CUBEJS_DB_DUCKDB_S3_SESSION_TOKEN The token for the S3 session A valid Session Token ❌
CUBEJS_DB_DUCKDB_EXTENSIONS A comma-separated list of DuckDB extensions to install and load A comma-separated list of DuckDB extensions ❌
CUBEJS_DB_DUCKDB_COMMUNITY_EXTENSIONS A comma-separated list of DuckDB community extensions to install and load A comma-separated list of DuckDB community extensions ❌
CUBEJS_DB_DUCKDB_S3_USE_CREDENTIAL_CHAIN A flag to use credentials chain for secrets for S3 connections true, false. Defaults to false ❌
CUBEJS_CONCURRENCY The number of concurrent queries to the data source A valid number ❌

Pre-Aggregation Feature Support

count_distinct_approx

Measures of type count_distinct_approx can be used in pre-aggregations when using DuckDB as a source database. To learn more about DuckDB's support for approximate aggregate functions, click here.

Pre-Aggregation Build Strategies

To learn more about pre-aggregation build strategies, head here.

Feature Works with read-only mode? Is default?
Batching ❌ ✅
Export Bucket - -

By default, DuckDB uses a batching strategy to build pre-aggregations.

Batching

No extra configuration is required to configure batching for DuckDB.

Export Bucket

DuckDB does not support export buckets.

SSL

Cube does not require any additional configuration to enable SSL as DuckDB connections are made over HTTPS.
