In some sticks, such as those based on Lantiq chipsets, the serial interface is exposed in the upper pins of the ONT, in order to read them there are two possibilities:
- the use of an SFP molex (farnell) to which four wires are to be soldered and the other pins removed. This makes the adapter compatible with a single serial combination.
- the use of a board to which the SFP molex is soldered, exposing the main SFP pins.
- a ready-made breakout board that already exposes all 20 SFP pins on 2.54 mm headers, if you'd rather not solder an SMD Molex connector yourself (see below).
{% include image.html file="ma5671a-root-1.jpg" alt="Example of how the SFP-TTL adapter is to be connected" caption="Example of how the SFP-TTL adapter is to be connected" %}
{% include image.html file="new-root-procedure/board-molex-arduino.jpg" alt="Example of how the SFP-TTL adapter is to be used with a custom board" caption="Example of how the SFP-TTL adapter is to be used with a custom board" %}
If you want to make your own board, here are some ideas:
{% include image.html file="board-dupont/top.svg" alt="Example of an SFP-TTL custom board" caption="Example of an SFP-TTL custom board" %} {% include image.html file="board-dupont/bottom.svg" alt="Example of an SFP-TTL custom board" caption="Example of an SFP-TTL custom board" %}
the components to be soldered are instead:
- 1x MOLEX SFP (like Molex-744410001 lcsc, farnell)
- 2x pinout 2x10 (like MINTRON MTP125-1210S1)

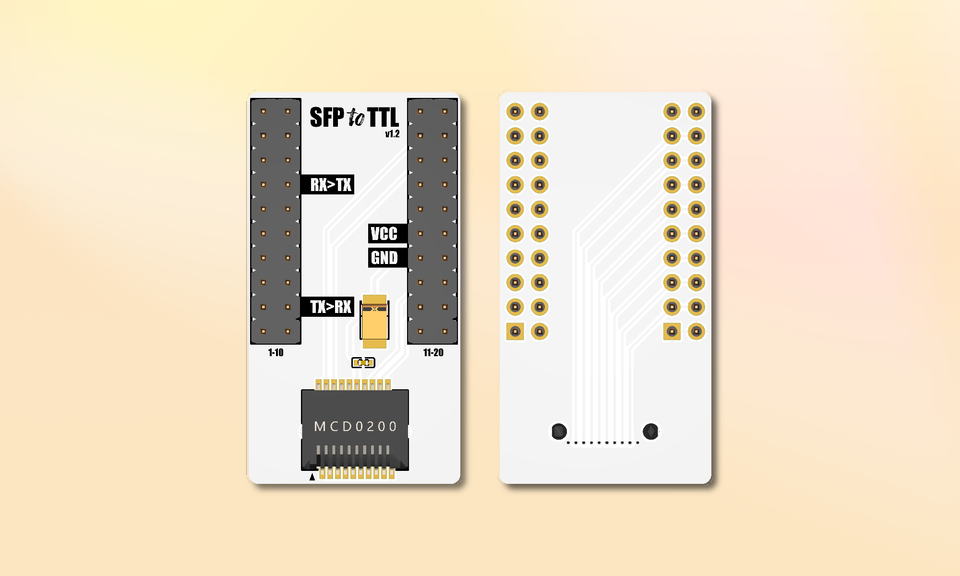

If you'd rather not solder an SMD Molex connector, a prebuilt and tested board is also available. It exposes all 20 SFP pins on 2.54 mm headers with RX/TX silkscreen, so you slot the module in and connect your USB-TTL adapter — no soldering required.
SFP-to-TTL Adapter — ships worldwide.
