Add HERD repr/_repr_html_ surfacing references as a flattened table#1510

Merged
rly merged 2 commits into
devfrom
enh/herd-repr
Jun 23, 2026
Merged

Add HERD repr/_repr_html_ surfacing references as a flattened table#1510
rly merged 2 commits into
devfrom
enh/herd-repr

Conversation

@rly

@rly rly commented Jun 23, 2026

Copy link
Copy Markdown
Contributor

Motivation

Fixes #1508.

HERD inherits the generic Container._repr_html_, which renders its six child tables as nested collapsibles. For a HERD read back from a file these can appear empty at first glance, even though the data is present and accessible via to_dataframe() and the individual tables. The PyNWB HERD tutorial (NeurodataWithoutBorders/pynwb#2200) currently has to warn users about this. The underlying need was raised in NeurodataWithoutBorders/nwb-schema#652.

Solution

Add a HERD-specific __repr__ and _repr_html_ that show a one-line summary (table sizes) plus the flattened to_dataframe() view (one row per object/key/entity association). The display falls back gracefully:

  • empty HERD: shows "No external resource references." (to_dataframe raises when there are no object-key rows, so the helper guards on that);
  • closed backing file or any to_dataframe failure: the existing closed-file warning banner is preserved and the table is omitted rather than raising (a repr must never raise).

Display only; no change to stored data or table APIs.

Screenshot

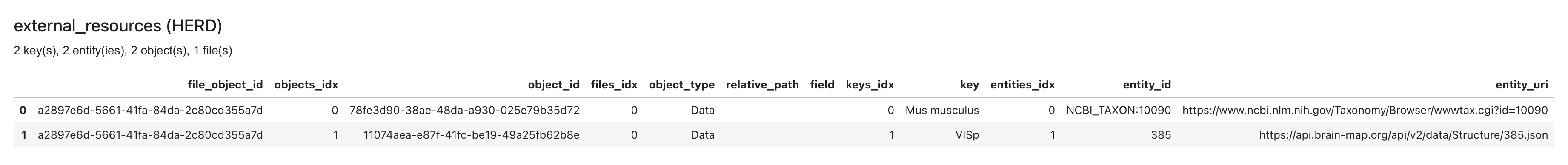

The _repr_html_ of a populated HERD, rendered as a Jupyter output cell:

HERD repr_html rendered in a Jupyter output cell

How to test the behavior

Added test_repr_empty and test_repr_populated in tests/unit/common/test_resources.py (empty HERD reprs do not raise and say "No external resource references"; a populated HERD surfaces the summary line and the entity content in the HTML repr). Full tests/unit/common/test_resources.py passes (63 passed, 10 skipped).

Checklist

  • Did you update CHANGELOG.md with your changes?
  • Have you checked our Contributing document?
  • Have you ensured the PR clearly describes the problem and the solution?
  • Is your contribution compliant with our coding style? This will be checked during CI.
  • Have you checked to ensure that there aren't other open Pull Requests for the same change?
  • Have you included the relevant issue number using "Fix #XXX" notation where XXX is the issue number.

🤖 Generated with Claude Code

A HERD (especially one read back from a file) rendered its six child tables
as nested collapsibles that can appear empty in Jupyter. Add a HERD-specific
__repr__ and _repr_html_ that show a one-line summary plus the flattened
to_dataframe() view, falling back gracefully when there are no references
(to_dataframe raises when empty) or the backing file is closed.

Addresses #1508.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@codecov

codecov Bot commented Jun 23, 2026

Copy link
Copy Markdown

Codecov Report

❌ Patch coverage is 93.33333% with 2 lines in your changes missing coverage. Please review.
✅ Project coverage is 93.19%. Comparing base (abd0a7f) to head (77e4530).
⚠️ Report is 5 commits behind head on dev.

Files with missing lines Patch % Lines
src/hdmf/common/resources.py 93.33% 2 Missing ⚠️
Additional details and impacted files
@@           Coverage Diff           @@
##              dev    #1510   +/-   ##
=======================================
  Coverage   93.19%   93.19%
=======================================
  Files          41       41
  Lines       10191    10221   +30
  Branches     2107     2110    +3
=======================================
+ Hits         9497     9525   +28
- Misses        416      418    +2
  Partials      278      278

☔ View full report in Codecov by Harness.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:
  • ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.

@rly rly enabled auto-merge (squash) June 23, 2026 18:23
@rly rly merged commit 895a284 into dev Jun 23, 2026
20 of 27 checks passed
@rly rly deleted the enh/herd-repr branch June 23, 2026 18:27
