Using kepler.gl with basemap services other than Mapbox

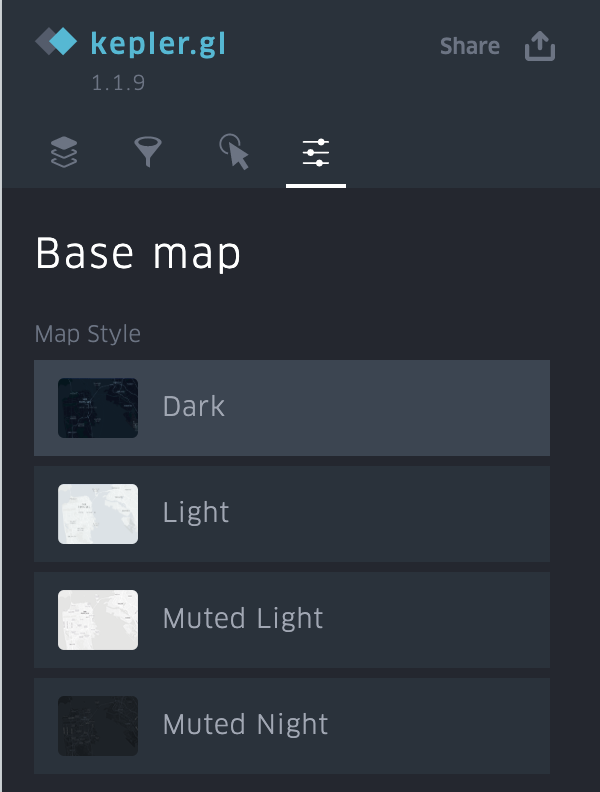

By default, kepler.gl uses mapbox-gl.js to render its base maps, displayed in map style selection panel.

You can custom kepler.gl to use other base map services, by passing in style.json written in Mapbox GL Style Spec. With custom style.json kepler.gl can render base map independent of mapbox vector tile service.

For instance. there is a example style.json. It points to the tile server described in the sources field.

  "sources": {
    "openmaptiles": {
      "url": "https://api.maptiler.com/tiles/v3/tiles.json?key=xxxx",
      "type": "vector"
    }
  }

1. The mapStyle object.

Your custom map style should be an object as below

// custom map style
{
  id: 'voyager',
  label: 'Voyager',
  url: 'https://api.maptiler.com/maps/voyager/style.json?key=xxxx',
  icon: 'https://api.maptiler.com/maps/voyager/256/0/0/0.png?key=xxx',
  layerGroups: [
    {
      slug: 'label',
      filter: ({id}) => id.match(/(?=(label|place-|poi-))/),
      defaultVisibility: true
    },
    {
      slug: 'road',
      filter: ({id}) => id.match(/(?=(road|railway|tunnel|street|bridge))(?!.*label)/),
      defaultVisibility: true
    }
  ]
}

style properties

• id (String, required) unique string.
• label (String, required) name to be displayed in map style selection panel
• url (String, required) a url pointing to the map style json object written in Mapbox GL Style Spec.
• icon (String, optional) image icon of the style, it can be a url, or an image data url
• layerGroups (Array, optional) Supply your own layerGroups to override default for more accurate layer grouping. When undefined kepler.gl will attempt to group layers of your style based on its id naming convention and use it to allow toggle visibility of base map layers.

2. Two Ways to supply kepler.gl with custom base map styles

Option 1. mapStyles prop

Pass mapStyles and mapStylesReplaceDefault prop to KeplerGl component.

const mapStyles = [{
  id: 'voyager',
  label: 'Voyager',
  url: 'https://api.maptiler.com/maps/voyager/style.json?key=xxxx',
  icon: 'https://api.maptiler.com/maps/voyager/256/0/0/0.png?key=xxx'
}];

const App = () => (
  <KeplerGl
    mapboxApiAccessToken=""
    mapStyles={mapStyles}
    mapStylesReplaceDefault={true}
    id="map"
  />
)

• mapStyles (Array) array of custom map styles.
• mapStylesReplaceDefault (Boolean) pass true if you want to replace all default kepler.gl base map options.
• mapboxApiAccessToken. Optional if mapStylesReplaceDefault is true and your mapStyles does not use Mapbox services

Option 2. Reducer initialState

Pass custom mapStyles to kepler.gl mapStyle reducer using the initialState plugin. And set default style by passing styleType.

This method is demoed in the example app Custom Map Style

const customizedKeplerGlReducer = keplerGlReducer.initialState({
  mapStyle: {
    mapStyles: {
      voyager: {
        id: 'voyager',
        label: 'Voyager',
        url: 'https://api.maptiler.com/maps/voyager/style.json?key=xxxx',
        icon: 'https://api.maptiler.com/maps/voyager/256/0/0/0.png?key=xxx'
      },
      terrain: {
        id: 'terrain',
        label: 'Outdoor',
        url: 'https://api.maptiler.com/maps/outdoor/style.json?key=xxx',
        icon: 'https://openmaptiles.org/img/styles/terrain.jpg',
        layerGroups: [
          {
            slug: 'label',
            filter: ({id}) => id.match(/(?=(label|place-|poi-))/),
            defaultVisibility: true
          },
          {
            slug: 'road',
            filter: ({id}) => id.match(/(?=(road|railway|tunnel|street|bridge))(?!.*label)/),
            defaultVisibility: true
          }
        ]
      }
    },
    // Set initial map style
    styleType: 'voyager'
  }
});

• mapStyles (Object) - id as key, and style as value.
• styleType (string) - Initial map style.

Which option is for me? If you want to replace all basemap styles, we recommends Option 2. So you can also set the initial style with styleType. If you are adding more options as basemaps, Option 1 is ideal.

3. mapboxApiAccessToken

If your map styles are not using Mapbox services, and you replaced all kepler.gl default map styles. mapboxApiAccessToken will not be required in KeplerGl component.

4. DEFAULT_LAYER_GROUPS

If layerGroups is not suppied, kepler.gl uses the default layer groups below.

export const DEFAULT_LAYER_GROUPS = [
  {
    slug: 'label',
    filter: ({id}) => id.match(/(?=(label|place-|poi-))/),
    defaultVisibility: true
  },
  {
    slug: 'road',
    filter: ({id}) => id.match(/(?=(road|railway|tunnel|street|bridge))(?!.*label)/),
    defaultVisibility: true
  },
  {
    slug: 'border',
    filter: ({id}) => id.match(/border|boundaries/),
    defaultVisibility: false
  },
  {
    slug: 'building',
    filter: ({id}) => id.match(/building/),
    defaultVisibility: true
  },
  {
    slug: 'water',
    filter: ({id}) => id.match(/(?=(water|stream|ferry))/),
    defaultVisibility: true
  },
  {
    slug: 'land',
    filter: ({id}) => id.match(/(?=(parks|landcover|industrial|sand|hillshade))/),
    defaultVisibility: true
  },
  {
    slug: '3d building',
    filter: () => false,
    defaultVisibility: false
  }
];
