INSPECTA-Spec-Code-Proof-Copilot

Spec, Code, and Proofs copilot for SysML v2. This multi-agent neuro-symbolic copilot leverages the INSPECTA symbolic toolchain, coupled with highly automated human-in-the-loop mechanisms, to generate trustworthy infrastructure and system code directly from SysML v2 models with a low entry point.

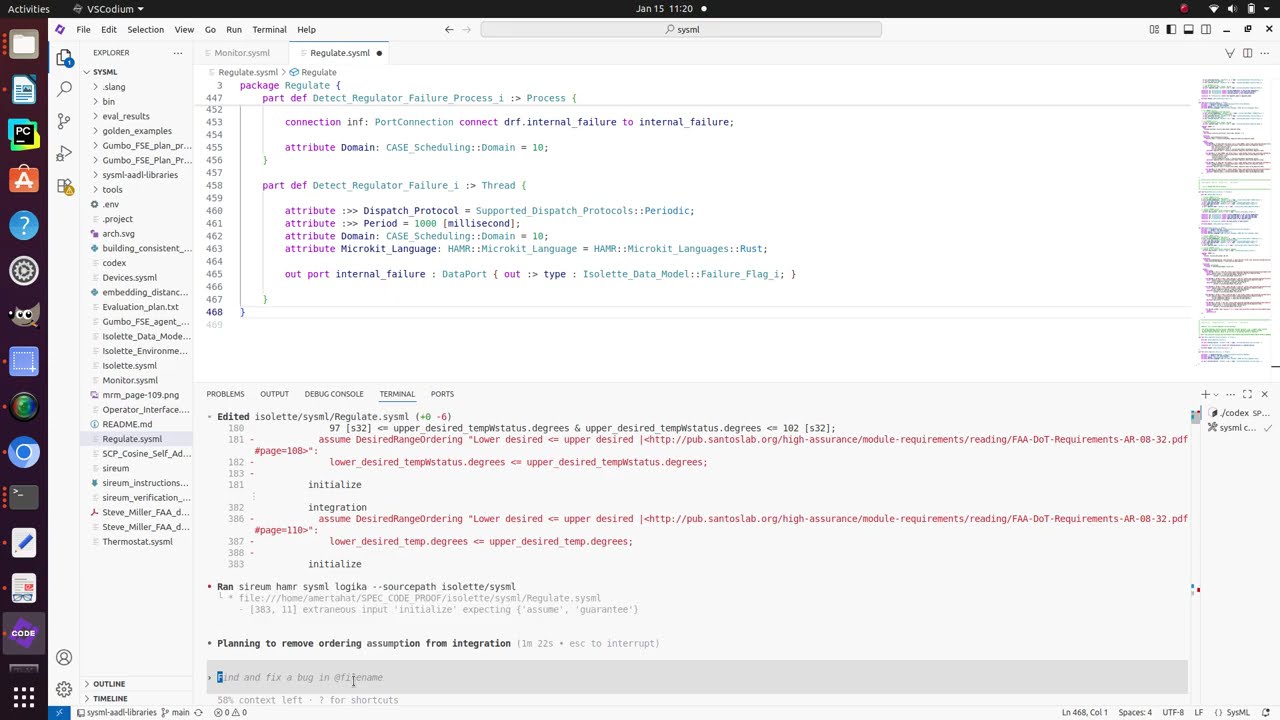

🎬 Video Demo

Click the image above to play the SCP Copilot video demo.

This demo shows English-to-System and Code-Level Verification for provided Scala/Slang application logic, where SCP Copilot:

• Is triggered by a low entry-point prompt (a single instruction that initiates the self-healing formal spec–code–proof loop):
• Parses English document requirements, Meta-Rules, and sysml v2 spec (but with NO GUMBO contracts)
• Applies Verification Plans and supervised self-healing loop:
• Generates Gumbo contracts
• Inserts the generated contracts into SysML v2 files
• Runs HAMR code generation
• Performs code-level verification and Logika model integration verification
• Detects errors, repairs formulas, and iterates automatically
• Continues until code-level verification successfully completes

Related artifacts isolette_io files used in the demo:

• English requirements file (input):

  check this file → Steve_Miller_FAA_docAR-08-32.pdf

• SysML v2 files with generated GUMBO contracts (output):

  check this dir → Isolette SysML files e.g., isolette_io/Monitor.sysml and isolette_io/Regulate.sysml

• Input SysML v2 files:

  check this dir → sysml-aadl-libraries submodule and this dir → Isolette SysML files, same as output but remove GUMBO contracts

• Meta-Rules file English to Gumbo Formal Specifications (User Mode):

  check this file → Gumbo_FSE_agent_Plan.txt

• Verification plan:

  check this file → sireum_verification_plan.txt

• Supervised self-adaptation plan (Meta-Rule Developer Mode):

  and this file → Cosine Meta-Rules Adaptation Plan
  > > Intended audience: This document is intended to be consumed by automated agents in Developer Mode.

Supervised Meta-Rules Adaptation Plan Design Rationale, Risk , and Comparative Analysis

• Supervised self-adaptation plan (Meta-Rule Developer Mode):

  check this file → Supervised Meta-Rules Adaptation Assurance Case > > Intended audience: This document is designed for human developers, users, and customers to evaluate the Cosine Meta-Rules Adaptation Plan below.

  i.e., this file → Cosine Meta-Rules Adaptation Plan

• Meta-Rules vs. Foundation Model Fine-Tuning (Comparison):

  Check this file → Meta_Rules_vs_Foundational_Model_Fine_Tuning_Comparison.txt

• Risk Mitigation and Governance (Meta-Rule Adaptation):

  Check this file → SCP_Meta_Rules_Risk_Mitigation_Mapping.txt
