Do you have a 10 inch mini rack, but don't want to design the shelves yourself? Easily generate your own 10 inch rack shelves, no CAD required.

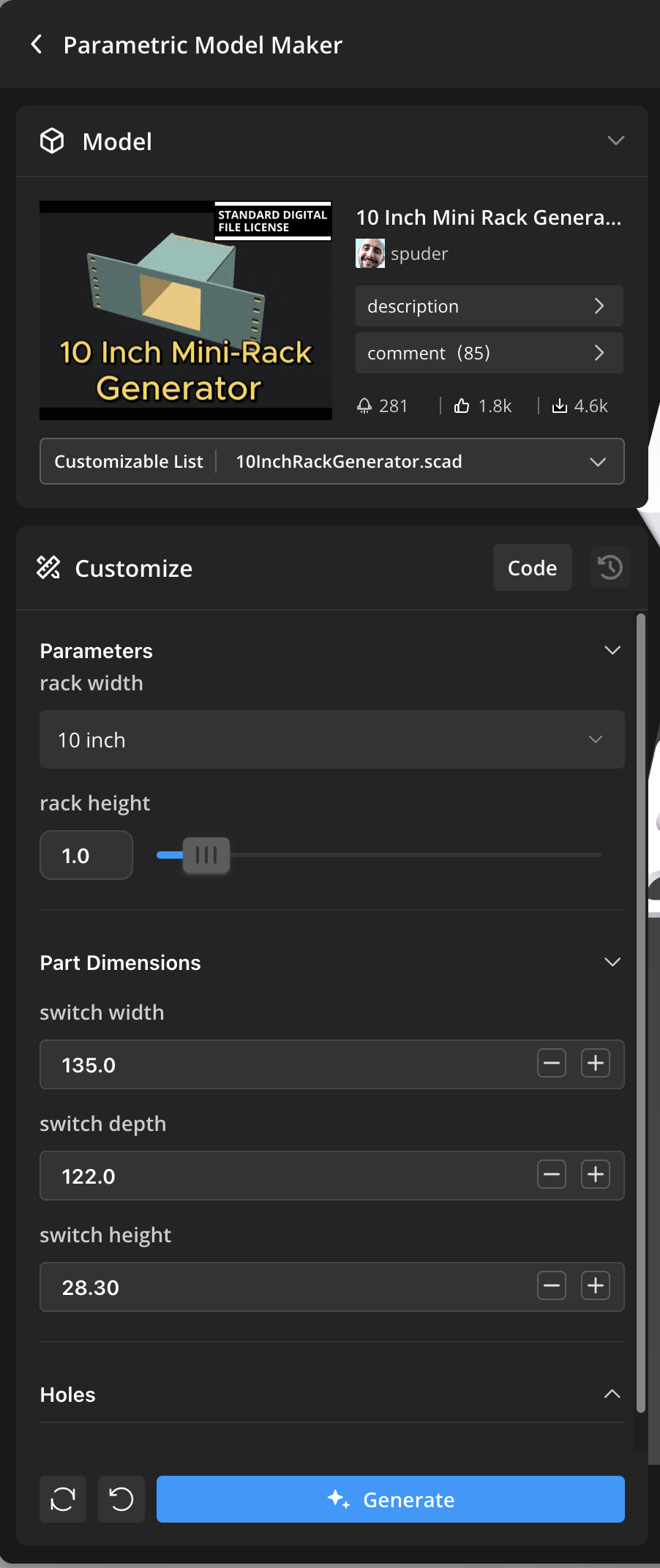

Click the Green "Customize" and enter the dimensions of your device.
A 0.42 mm tolerance is built in, which works well for most models.
Set switch_width, switch_depth, and switch_height to the width, depth, and height of the device you want to mount.
- rack_width (254.0) — 254 = 10 inch rack, 152.4 = 6 inch rack
- rack_height (1.0) — Height in U units (0.5–5U, each U = 44.45 mm)
- switch_width (135.0) — Width of the device, left to right (mm)
- switch_depth (135.0) — Depth of the device, front to back (mm)
- switch_height (28.3) — Height of the device (mm)
- front_wire_holes (false) — Adds small holes to route a USB or power cable through the front
- wire_diameter (7) — Diameter of front wire holes (mm)
- air_holes (true) — Hexagon cutouts on sides and back to reduce material and improve cooling
- half_height_holes (true) — Show partial rack mounting holes when rack_height is a fraction
- case_thickness (6) — Thickness of the shell walls (mm)
- front_plate_thickness (3.0) — Thickness of the front face plate (mm)
- front_plate_hole (true) — When false, front plate is solid — useful for devices that don't need front access
- front_lip (true) — Adds a small lip around the front opening to prevent the device from sliding out
- tolerance (0.42) — Gap added to each side between device and shell walls (mm)
- Firewalla Gold:
120 x 120 x 30 mm* - Firewalla Purple (Ethernet):
130 x 110 x 34 mm* - Firewalla Purple SE:
90 x 60 x 30 mm* - UniFi Security Gateway:
135 x 135 x 28.3 mm* - UniFi Cloud Key G2+:
131.2 x 27.1 x 134.2 mm* - UniFi Flex Mini:
107 x 70 x 21 mm* - UniFi Flex Mini 2.5G:
117.1 x 90 x 21.2 mm* - UniFi Flex 2.5:
212.9 x 76 x 33.5 mm* - UniFi Lite 8 POE:
99.6 x 163.7 x 31.7 mm* - UniFi Lite 16 POE:
192 x 185 x 44 mm* - UniFi Express:
98 x 98 x 30 mm* - UniFi Cloud Gateway Ultra/Max:
141.8 x 127.6 x 30 mm*
- IBM M70q Gen 5:
179 x 182.9 x 36.5 mm* - IBM M70q Gen 4:
179 x 183 x 34.5 mm* - IBM M90q Gen 5:
179 x 182.9 x 36.5 mm* - Dell OptiPlex 7020:
182 x 178 x 36 mm* - HP Elite Mini 800:
177.5 x 175.2 x 34.3 mm* - M4 Mac Mini:
127 x 127 x 50 mm* - BeeLink ME Mini:
99 x 99 x 99 mm* - Xyber Hydra:
140 x 98.5 x 34.5 mm*
- Synology DS223j:
165 x 100 x 225.5 mm* - Synology DS223:
165 x 108 x 232.7 mm* - Synology DS124:
166 x 71 x 224 mm*
* Dimensions are Width × Depth × Height
- 10 Inch parametric shelf generator
- Alternative 10 inch rack generator with cage
- OpenRack - A 19Inch modular system
Source Code is available on github
